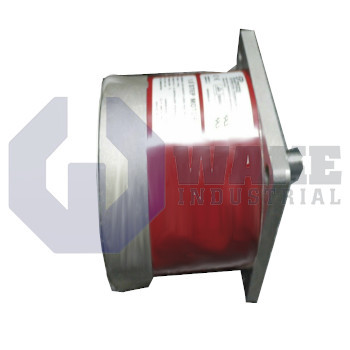

The Kollmorgen E41HCHT-LNK-NS-00 is a stepper motor from the E Hybrid Stepper Motors series, featuring a NEMA 42 frame size and a holding torque of 9.53 Newton-meters. This motor supports a maximum axial load of 400 pounds, offers a rated current per phase of 5.4 Amps, and has a system MS connector for connections. With SIGMAX construction and a weight of 10.9 pounds, it is designed for heavy-duty NEMA mounting.
Internal Product Review
The E41HCHT-LNK-NS-00 is a Kollmorgen hybrid stepper motor with a NEMA 42 frame and 9.53 N·m holding torque. A 1.8-degree step angle and 5.4 A rated current per phase support stable low-speed torque production and predictable positioning. SIGMAX construction with a System MS connector makes this unit an excellent choice for demanding motion applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The E41HCHT-LNK-NS-00 hybrid stepper motor belongs to the E Hybrid Stepper Motors series and is manufactured by Kollmorgen. Designed for incremental positioning in industrial automation, this unit converts discrete pulse commands into controlled rotary motion without feedback sensors. Its SIGMAX construction concentrates magnetic flux, allowing high torque in compact spaces such as index tables, gantry axes, and packaging stations. Because it operates from commanded step pulses, it can be integrated with standard stepper controls in straightforward motion systems. This arrangement suits indexing, feed control, and repeated point-to-point moves.
The motor’s holding capability reaches 9.53 N·m, supplying static torque for applications that must resist back-driving. Each full step is 1.8 degrees, giving 200 discrete positions per revolution, and the step accuracy is limited to ±1.5% to reduce cumulative error. Phase current is 5.4 A and flows through a winding resistance of 0.61 Ω with an inductance of 9.0 mH, which supports rapid current rise during start-stop motion. A 4-lead circuit works with the System MS connector on the housing. The single magnetic stack and low-speed torque winding help maintain strong stall torque below 300 rpm. The housing uses a 4.20-inch square flange for heavier machinery.
Heavy-duty NEMA face mounting and a smooth shaft allow couplings to transmit motion while the bearings support up to 400 lb of axial load and 140 lb of radial load without damage. A rotor inertia of 0.080 oz-in-s² supports fast acceleration, while the 10.9 lb mass helps reduce vibration at speed. Heat leaves the frame through a 1.8 °C/W thermal path, and Class B insulation tolerates 130 °C with 340 VDC dielectric strength and 100 megohms insulation resistance. Continuous duty is permitted from -20 °C to +40 °C, making the motor suitable for unconditioned factory floors. Low detent ripple from the single-stack design also helps produce smoother motion during microstepping.
