Product Description:

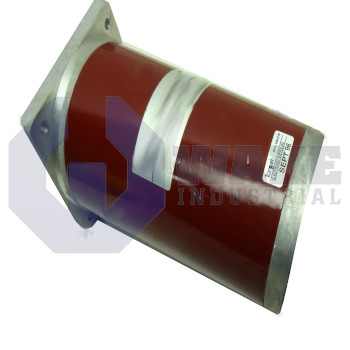

The E34HRHP-LDK-NS-00 hybrid stepper motor is produced by Kollmorgen and forms part of the E Hybrid Stepper Motors series. It converts digital pulse trains from a stepper drive into repeatable angular increments, providing open-loop positioning for pick-and-place, indexing, and light transport duties on automated machinery. The compact housing adds incremental motion where closed-loop servos are unnecessary, reducing component count while still meeting industrial accuracy requirements.

This motor occupies a NEMA 34 frame and uses a heavy-duty NEMA face for rigid installation against gearboxes or belt drives. At rest, it delivers 1300 oz-in of holding torque, generated by a four-stack rotor that improves detent strength. Electrical performance includes a per-phase rated current of 7.7 A, a phase inductance of 4.4 mH, and a phase resistance of 0.33 ohms, which allows drives to command high slew rates with manageable heat rise. The winding is arranged for maximum torque at high speed, while 4-lead parallel wiring, a regular leadwire connection style, and 18 AWG conductors help reduce voltage drop. With a step angle of 1.8 degrees, the motor produces 200 steps per revolution and maintains ±1.5% step accuracy.

The mechanical structure uses Kollmorgen's SIGMAX construction to increase flux density while keeping rotor inertia at 0.035 oz-in-s², supporting rapid acceleration under an allowable axial load of 180 lb and a radial load of 96 lb. Class B insulation rated for 130 °C, an insulation voltage limit of 340 Vdc, and an insulation resistance of 100 Megohms help protect against dielectric failure. Thermal behavior is characterized by 1.7 °C/W resistance, and the motor can operate in ambient air from -20 °C to +40 °C without derating. A smooth shaft eases coupling, while the 9.7 lb mass helps stabilize mounting plates during continuous duty.
