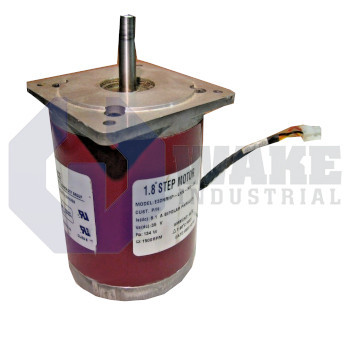

The Kollmorgen E33HRFT-LNK-NS-00 is a hybrid stepper motor from the E Hybrid Stepper Motors series with a NEMA 34 frame size and a holding torque of 6.89 Newton-meters. It features a smooth shaft, 8 lead regular/leadwire connections, and operates with SIGMAX motor construction. The motor offers a step angle of 1.8 degrees, provides 200 steps per revolution, and has an insulation class B rating of 130°C.
Internal Product Review
The E33HRFT-LNK-NS-00 is a Kollmorgen hybrid stepper motor with a NEMA 34 frame and 6.89 N·m holding torque. An 8-lead configuration and max torque at low speed winding give the unit excellent flexibility for drive matching. The 1.8-degree step angle is a strong fit for demanding positioning duty.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The E33HRFT-LNK-NS-00 is a hybrid stepper motor built by Kollmorgen within the E Hybrid Stepper Motors series. As a two-phase, open-loop positioning element, it converts command pulses into angular motion for indexers, packaging actuators, and gantry axes that do not require feedback devices. The motor integrates SIGMAX magnetic construction and a smooth shaft so that torque density is increased while vibration is reduced during precise incremental moves. This design suits motion systems that rely on repeatable pulse-based positioning with a straightforward electrical interface.
The frame conforms to the NEMA 34 footprint, allowing installation in standardized mounts. A holding torque of 6.89 N·m helps the motor resist external load movement at standstill. Each full step advances the rotor by 1.8 degrees, giving predictable angular resolution without micro-stepping. In parallel wiring, the windings draw 5.1 A, a current level that supports stronger torque at higher shaft speeds. When wired in series, the coils exhibit a total inductance of 28.2 mH, which is better suited to applications that favor lower driver ripple and cooler running.
The motor completes a full turn in 200 steps per revolution, a count that aligns with common controller pulse outputs and simplifies ratio calculations. Continuous service is supported between -20 °C and +40 °C, matching typical enclosure environments without forced cooling. Internal insulation is rated at Class B 130 °C, and the motor has 100 MΩ insulation resistance with a 340 Vdc withstand rating to limit leakage under drive voltage. Overall housing length is contained to 5.33 in, which helps when retrofitting into limited machine cavities. Additional details include an eight-lead, 22 AWG harness for series or parallel connection, a heavy-duty NEMA flange, three rotor stacks that raise low-speed torque, and a step accuracy of ±1.5% for repeatable indexing.
