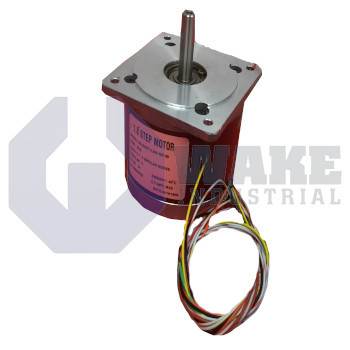

The Kollmorgen E31NRFT-LNN-NS-00 is a hybrid stepper motor from the E Hybrid Stepper Motors series, featuring a NEMA 34 frame size and a single stack design. The motor has a body length of 2.58 inches and a shaft diameter of 0.375 inches with a smooth shaft. It operates with 8 lead connections and delivers a step angle of 1.8 degrees for 200 steps per revolution.
Internal Product Review
The E31NRFT-LNN-NS-00 is a Kollmorgen hybrid stepper motor in a NEMA 34 frame with 8-lead connections. A 1.8-degree step angle and ±1.5% step accuracy make the motor a strong choice for precise motion control.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The E31NRFT-LNN-NS-00 is a hybrid stepper motor manufactured by Kollmorgen and supplied in the E Hybrid Stepper Motors series. It converts discrete current pulses from a controller into precise shaft movement for indexing tables, small conveyors, and labeling platforms in industrial automation. The design uses Kollmorgen’s SIGMAX construction to increase flux density and low-speed torque while retaining standard mounting dimensions. Because motion is produced in fixed angular increments, the motor is well suited to start-stop tasks that depend on consistent indexing. It can also be paired with modern drives to improve motion smoothness during low-speed operation.
Mechanical dimensions follow the NEMA 34 standard, giving the motor a square face that mates with common gearboxes and brackets. Overall body depth is 2.58 in (65.5 mm), so the unit fits into shallow installations where available space is limited. Each electrical step advances the rotor by 1.8 degrees, which yields 200 full-step positions per revolution before microstepping is added by the drive. The windings use Class B, 130 °C insulation, allowing the motor to tolerate elevated internal temperatures during continuous-duty operation. This combination supports accurate incremental motion while keeping the package compact.
The permitted ambient range of -20 °C to +40 °C supports operation in both cool storage areas and warmer control panels. The smooth shaft measures 0.3750 in in diameter and is 1.25 in long, accommodating standard couplings while keeping the output interface simple. Insulation resistance is rated at 100 megohms at 500 VDC, which helps limit leakage current under normal conditions. Flexible wiring is provided by an 8-lead configuration on 12-inch #22 AWG conductors, allowing series, parallel, or unipolar connection schemes to match the drive and the required speed-torque balance. This wiring flexibility gives the motor broader compatibility with different control methods.
