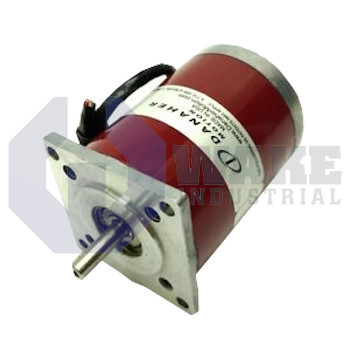

E22NRFB-LNN-NS-00 Kollmorgen
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
The Kollmorgen E22NRFB-LNN-NS-00 is part of the E Hybrid Stepper Motors series and features a NEMA 23 frame size with a motor diameter of 2.25 inches. It has 8 lead connections, supports Parallel, Series, and Unipolar wiring modes, and is constructed with SIGMAX technology. The step angle is 1.8 degrees, providing 200 steps per revolution, and the insulation is rated Class B with 130°C maximum temperature and 340 Vdc insulation voltage.
Internal Product Review
The E22NRFB-LNN-NS-00 is a Kollmorgen hybrid stepper motor built in a NEMA 23 frame with a 1.8-degree step angle. SIGMAX construction and 8-lead connectivity support flexible integration and dependable motion control in demanding equipment. A step accuracy of ±1.5% makes this unit a strong choice for precise positioning.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The E22NRFB-LNN-NS-00 is a hybrid stepper motor manufactured by Kollmorgen for the E Hybrid Stepper Motors series. This two-phase device converts pulse trains from an indexer into incremental rotation for conveyors, small slides, and labeling heads in industrial automation. As an open-loop actuator, it provides repeatable positioning for applications that do not require servo feedback. An internal permanent-magnet rotor works with bifilar windings to deliver high holding torque at zero speed. This operating style is well suited to compact machinery that relies on fixed pulse counts for consistent start-stop motion and short indexing moves.
With a frame size of NEMA 23, the motor body measures 2.25 in in diameter, which helps it fit common brackets and compact motion assemblies. The 8 lead arrangement supports parallel, series, or unipolar wiring, so the drive can be matched to available current and voltage. Each input pulse turns the shaft 1.8 degrees, which yields 200 full steps per revolution for straightforward indexing. That wiring flexibility allows the same motor to be adapted to different drive topologies without changing the mechanical package. Two stator stacks increase detent and holding torque, while the laminated rotor helps reduce eddy-current heating. The motor uses a smooth, unkeyed shaft, and regular leadwire pigtails provide a simple connection style. Because no shaft seal is fitted, external protection is advisable where fluids or heavy debris are present.
Step accuracy is within ±1.5%, and Kollmorgen's SIGMAX construction helps concentrate magnetic flux. Electrical insulation is rated for 340 Vdc impulse and conforms to Class B, 130 °C thermal limits. Insulation resistance is 100 megohms when measured at room temperature. These insulation characteristics support reliable operation under normal thermal loading and repeated electrical switching. Continuous duty is permitted from -20 °C to +40 °C, which suits typical control-cabinet environments. The motor has no feedback device, so any closed-loop correction must be handled by the external control system.
