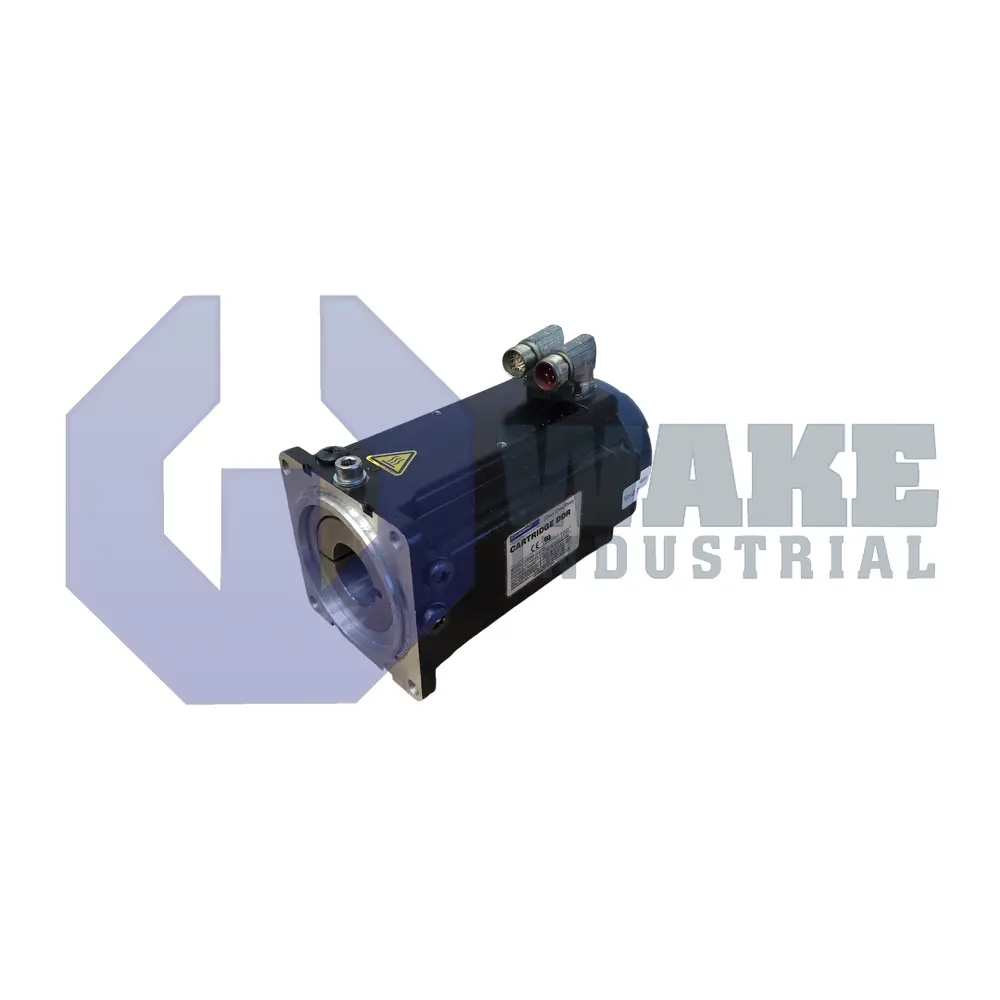

The CH054A-13-3105 is manufactured by Kollmorgen in part of the Cartridge Direct Drive Motor series. The cartridge DDr features a continuous torque of 21.8 N-m and a peak torque of 63.8 N-m. The cartridge DDR can reach a maximum speed of 1200 RPM and a volt system of 400/480 VAC.)

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

CH054A-13-3105

  • Rated 4.5 (21 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The CH054A-13-3105 is manufactured by Kollmorgen in part of the Cartridge Direct Drive Motor series. The cartridge DDr features a continuous torque of 21.8 N-m and a peak torque of 63.8 N-m. The cartridge DDR can reach a maximum speed of 1200 RPM and a volt system of 400/480 VAC.)

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a CH054A-13-3105 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen Company is a leading producer of automation and motion technologies used in industrial and commercial applications. To ensure unmatched performance in your factory, they provide products that are precisely intended for the application at hand, exceptional motion solutions to fuel the ever-increasing automation industry, and have a global footprint to offer services to industries of all kinds. One of their on-demand products is the cartridge DDR motors of which the CH054A-13-3105 is part of. This motor eliminates the use of gearboxes, gears, cams, or pulleys providing you a compact motor that significantly saves on space and cost.

This Kollmorgen motor presents you with numerous advantages for everyday use. This includes a higher bandwidth for faster start/stop cycles which increases the overall throughput of the machine. With the CH054A-13-3105 you require fewer parts for mounting and bringing it operation. This reduces cost, assembly time, and maintenance. Since it comes in a brushless design, you are presented with a maintenance-free motor that improves longevity without constant replacement of parts. This motor does not place limits on how you can install it. You can use the vertical or horizontal orientation regardless of the application.

The rotor inertia of the CH054A-13-3105 is capped at 52.8kg-cm3, the maximum speed at 400V and 480V is 2100RPM and 2500RPM respectively. Its peak line current is 26.5amps RMS and the peak torque is 63.8Nm. The basic motor data is a CH family with a voltage range between 400 and 480V, a 5.43 square inches housing, and extra-long stack, and a solid shaft that couples a split ring without a key. Like other DDR motors, it features a sealed housing of protection category IP 64.

  • CH-054A-13-3105
  • CH054A-133105

CH054A-13-3105 Technical Specifications

Maximum Speed at 400 V : 2100 rpm
Mounting: Horizontal or Vertical
Maximum Speed at 480 V : 2500 rpm
Rotor Inertia : 52.8 kgcm3
Peak Line Current : 25 A
Peak Torque : 63.8 Nm
Voltage Range: 400 to 480 V
Shaft Type: Solid
Spit Ring: Avaliable
Protection Rating: IP64

Frequently Asked Questions about CH054A-13-3105


Q: What is the voltage range for the CH054A-13-3105?

A: The CH054A-13-3105 motor operates within a voltage range of 400 to 480V.

Q: Does the CH054A-13-3105 motor’s design eliminate the need for gearboxes and other components?

A: Yes, the motor is designed to work without gearboxes, gears, cams, or pulleys, offering a more compact solution that saves on both space and cost.

Q: What is the housing size of this motor?

A: The housing size of the CH054A-13-3105 is 5.43 square inches ensuring space saving design.

Q: What kind of shaft does the CH054A-13-3105 have?

A: The motor features a solid shaft that couples a split ring without the use of a key.

Q: What is the protection category of the CH054A-13-3105 housing?

A: The housing is sealed and falls under the protection category IP 64, ensuring a certain level of durability and protection.

Internal Product Review

  • ‘‘The model is highly efficient with a high speed rating and space saving design. Features like higher bandwidth for faster cycles and versatile installation options make it an asset for any application.’’
