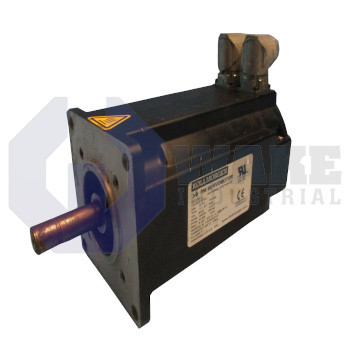

The AKM53G-SSCNR-02 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 38.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 3.87 kW.

AKM53G-SSCNR-02

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM53G-SSCNR-02 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 38.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 3.87 kW.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKM53G-SSCNR-02 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen is a motion system manufacturing company that aims at solving the most demanding motion challenges throughout the world. This company is famous for its low-cost manufacturing products which range from servo motors, stepper motors, actuators, and motion controllers. The AKM permanent magnetic servo motor series is one of the motor series on the market to date.

The AKM magnetic servo motors can meet the high performance and precise speed regulations needed by industrial manufacturers worldwide. The AKM53G-SSCNR-02 uses a Resolver feedback system of a two-pole-hollow-shaft to regulate the motor control system for smooth running. This motor runs with a rated speed of 2400 rpm with an output of 2.39 kilowatts at 640 volts DC. This particular product in the AKM series has a 108 nm flange size in which both the flange and shafts are of unique types. The weight of this specific product is 24 lbs. The device has an electrically isolated PTC system connected with the digital servo amplifier for protective measures.

The motor consists of a 0.5m shielded cable for safety measures, and it has an angular IP65 connector for power supply and feedback signals. The ambient temperature for this motor ranges from 5 to 40 degrees Celsius. There are failsafe holding brakes for providing static holding torque to the motor shaft, and SERVOSTAR 600 controls the holding brake. Here the length of the holding brake is directly proportional to the length of the motor. The bearing system lasts for 20,000 hours of operation under normal conditions, and they should need to replace for avoiding operational difficulties

  • AKM-53G-SSCNR-02
  • AKM53G-SSCNR-O2

AKM53G-SSCNR-02 Technical Specifications

Frame Size: AKM5
Frame Size:
Max BUS (VDC): 640
Max Rated N: 6000
Max Rated Power at Max BUS: 3.87 kW
Max Stall Tc: 14.1 Nm
Max Tp: 38.4 Nm
Stack Length: 3
