The AKM44G-GCCNR-01 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

AKM44G-GCCNR-01

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM44G-GCCNR-01 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKM44G-GCCNR-01 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

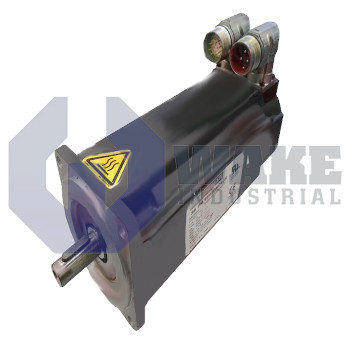

Kollmorgen Company produces top-tier motion control technologies that are used in numerous industries across the globe. Synchronous servomotors are part of their range of products. The AKM series of motors is among these products. This series is designed to be driven by SERVOSTAR amplifiers and for drives for machine tools, industrial robots, packaging machines, and more. The AKM44G-GCCNR-01 comprises of Resolver feedback, shaft with keyway, and 0.5m shielded cables with angular connectors. It has an 84mm alternative IEC standard flange and a G winding type. When combined with Kollmorgen digital amplifier it becomes ideal for positioning tasks that require high dynamics and stability.

This DC motor is permitted to be brought to operation only under predetermined ambient conditions. They include an operating temperature of 5 to 40 degrees, a climate category of 3K3, and permissible humidity of 95% without condensation. The ball-bearing life is capped at 20,000 operating hours. Avoid using force or blows during assembly to mitigate bearings’ destruction. The AKM44G-GCCNR-01 features rare earth neodymium-iron-boron magnetic materials that enable the servo amplifier to drive the motor in a dynamic way. The servo amplifier performs electrical commutation mitigating the need for brushes. The brushless design eliminates the need for maintenance.

The AKM44G-GCCNR-01 features a standstill torque of 5.88Nm, standstill current of 5.00A, and a maximum mains voltage of 480 VAC. It comes with a rated speed of 5000min-1, rated torque of 3.19Nm, and rated power of 1.67kW. Its standard weight is 5.3kg. Use Isopropanol to clean the housing and avoid opening the motor since it invalidates the one year warranty. Only persons trained in electrical engineering or motion technology should operate, install and commission the AKM44G-GCCNR-01. Get this brushless motor from Wake Industrial.

  • AKM-44G-GCCNR-01
  • AKM44G-GCCNR-O1

AKM44G-GCCNR-01 Technical Specifications

Frame Size: AKM4
Frame Size:
Max BUS (VDC): 640
Max Rated N: 6000
Max Rated Power at Max BUS: 1.73 kW
Max Stall Tc: 6.0 Nm
Max Tp: 20.4 Nm
Stack Length: 4
