AKM43E-BKC2R-00

  • Rated 4.5 (11 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 1-2 Days
  • Call for Expedited Shipping and Product Condition Options
The AKM43E-BKC2R-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock! AKM43E-BKC2R-00

AKM43E-BKC2R-00

  • Rated 4.5 (11 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 1-2 Days
  • Call for Expedited Shipping and Product Condition Options
The AKM43E-BKC2R-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a AKM43E-BKC2R-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Servomotors are meant to deliver precise control of angular position, velocity, and acceleration. This is why industries around the world use them in CNC machines, robotics applications, and automated machinery. Kollmorgen is an engineering company known for producing high-efficiency motors, like those found in the AKM series. This series features lightweight brushless servos that promise to deliver high power on a relatively low voltage. This high-density power comes from a rotor that features rare-earth magnet material. Moreover, the motor components are well-protected inside a IP65 housing. These brushless servomotors meet international standards. Their brushless design lowers the amount of necessary maintenance on the motors.

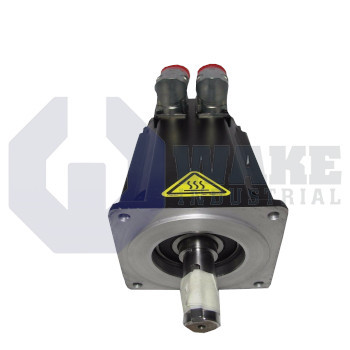

The AKM43E-BKC2R-00 synchronous motor by Kollmorgen features a flange size of 84mm. The mounting of the flange conforms to NEMA standards. The servomotor offers a three-stack rotor that features a high-function rare-earth magnet. It’s a neodymium-iron-boron material that produces high energy on a low supply voltage. This particular feature enabled the makers to come up with multiple input-voltage variants. The 480V variant produces up to 1.18 kW, has a rated speed of 3000 RPM, and a rated torque of 3.76 Nm. This servomotor can reach as high as 7500 RPM with a peak torque of 15.9 Nm.

Furthermore, the AKM43E-BKC2R-00 features a shaft with an open keyway.  Fully rotatable angular connectors can be found on top of the motor for both the power connection and feedback connection. The 4+4 pole angular connector is meant for power supply. The 12-pole angular connector is meant for the built-in resolver. This servomotor features a 24Vdc electrically-released holding brake that applies a holding torque of 6 Nm. The powerful F-class winding can withstand up to 155 degrees Celsius and ensures consistent and smooth operation.

  • AKM-43E-BKC2R-00
  • AKM43E-BKC2R-OO

AKM43E-BKC2R-00 Technical Specifications

Frame Size: AKM4
Weight : 4.35Kg
Maximum Rated DC bus Voltage : 640VDC
Maximum Mechanical Speed: 6000 revolution per minute
Maximum Input current: 11A
Maximum Torque: 15.9 Nm
Torque Constant: 1.72Nm/A
Back EMF constant: 111V/K
Inline resistance : 8.61Ohms
Inline Inductance : 32.6mH

Frequently Asked Questions about AKM43E-BKC2R-00


Q: How does the AKM43E-BKC2R-00 regulates its operational temeprature?

A: The AKM43E-BKC2R-00 features a unique housing design which facilitates the easy dessipation of the heat generated in the motor through natural convection.

Q: What is the correct way to clean the housing of the AKM43E-BKC2R-00?

A: The housing of the AKM43E-BKC2R-00 should be cleaned with a soft cloth. Avoid the use of high water pressure as this can remove the motor coating.

Q: What type of industrial application is the AKM43E-BKC2R-00 designed for?

A: The AKM43E-BKC2R-00 is required for industrial application that require smooth operation over a broad speed range. Example of industrial machines compatible with this motor include food processing machines, metal forming machines, packaging machines, and lots more.

Q: Does the AKM43E-BKC2R-00 contain an holding brake?

A: Yes. The AKM43E-BKC2R-00 contains a 24V holding brake which helps to retain the load connected to the motor output shaft when the motor is at a standstill.

Q: What is the recommended environmental conditions for the operation of the AKM43E-BKC2R-00?

A: The AKM43E-BKC2R-00 should not be used at an ambient temparature that exceeds 500C. It should also be kept away from relative humidity that exceeds 95%
