Product Description:

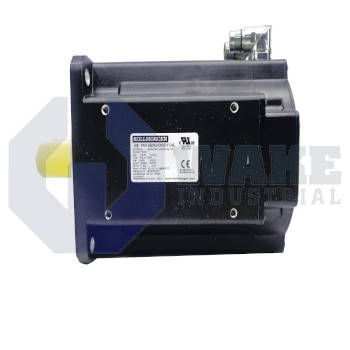

The AKM74P-ANCNR-00 is a synchronous servo motor from Kollmorgen that belongs to the AKM Synchronous Servo Motors series. Designed for closed-loop motion control, it integrates into drive systems that need fast response and high positional accuracy. The model follows the AKM product family naming scheme, where the 74 frame code, P winding, and related suffixes identify the mechanical and electrical options selected for industrial automation tasks such as gantry axes, feeders, and inspection stages.

The housing carries a frame dimension of 188 mm, giving the unit a compact diameter for size-74 installations. Its mounting face uses an IEC flange with accuracy N, which helps maintain concentricity when the motor is coupled to gearheads or belt pulleys. The shaft is a smooth shaft, so torque is transferred through clamping hubs or compression couplings. Electrical terminations are handled by 2 SpeedTec Ready connectors, providing keyed push-lock mating for secure cable attachment. Rotor position is measured by a resolver, and the motor is supplied without a brake, so external holding is required if vertical loads must remain secured. The motor uses the manufacturer's standard customization level.

The feedback resolver generates 2 poles per electrical cycle and is configured for single-turn inductive operation, so the controller receives absolute shaft position within one revolution without relying on batteries or gearing. Within the stator, the windings follow winding code P, which corresponds to voltage, current, and speed constants suited to drives operating on typical 230 to 480 V supplies. A rotor length index of 4 balances torque output against motor mass, while the feedback hardware fits the manufacturer's Size 10/15/21 envelope for consistent integration with compatible control systems.
