Product Description:

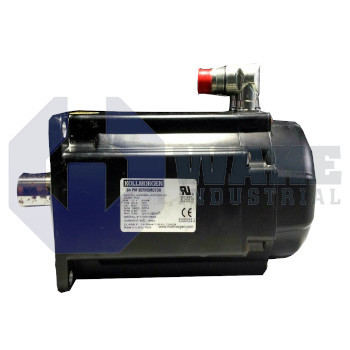

The AKM65L-ANC2R-00 synchronous servo motor is manufactured by Kollmorgen and belongs to the AKM Synchronous Servo Motors series. It is a rotary actuator intended for closed-loop tasks such as pick-and-place heads, indexing tables, and lightweight gantries, where precise speed, torque, and position are required. The motor forms a direct interface between the drive electronics and the mechanical load, converting commanded current into accurate motion for continuous or intermittent duty cycles. Its compact servo format suits automated axes that need repeatable response during rapid starts, stops, and direction changes.

A built-in 24 V holding brake clamps the rotor whenever control power is disabled, helping retain a load on vertical axes or during an emergency stop. Power and feedback cabling exit through 2 SpeedTec Ready connectors, a twist-lock interface that helps speed installation and reduce wiring errors. Rotor angle is reported by a resolver with two poles; as a single-turn inductive element, it resists shock and elevated temperatures better than optical encoders. Mounting is handled by an IEC flange with accuracy N, maintaining concentric alignment between the motor and the driven load. The housing uses a 138 mm frame dimension, which gives the machine a predictable installation envelope.

The mechanical output end uses a smooth shaft, so torque is transferred through clamp couplings without the stress concentrations associated with keyways. Performance scaling comes from Rotor length index 5, which increases the active motor length for higher continuous torque within the same cross-section. Electrical behavior follows Winding designation L, so the matching drive can apply the proper voltage and current relationship for this motor variant. The feedback package uses the compact Size 10/15/21 form factor, which keeps the sensor assembly suited to the motor body. The motor is supplied in a standard configuration for general machine integration.
