Product Description:

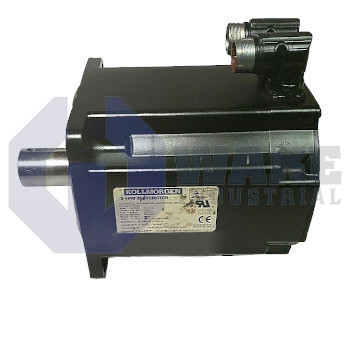

The AKM63K-ACCNR-00 is a synchronous servo motor manufactured by Kollmorgen for the AKM Synchronous Servo Motors series. It is intended for closed-loop motion axes where rapid positioning, steady velocity control, and repeatable response are required in industrial automation cells, pick-and-place gantries, and packaging stations. In these applications, the motor converts drive commands into controlled rotary motion for indexing, transfer, and synchronized axis movement. When paired with a compatible digital drive, it delivers continuous torque while maintaining stable feedback signals for accurate motion control inside IEC-based machine layouts.

This model is supplied without a brake, so an external device must hold the load when input power is removed. Two front-mounted 2 SpeedTec Ready connectors separate power and signal wiring, which helps keep cable routing organized and shielding reliable during operation. Rotor position is reported through a resolver with 2 poles, supporting commutation and position evaluation in the controller. The stator housing measures 138 mm across the square frame, which helps the motor fit compact machine layouts. The rotor length index of 3 provides a balanced relationship between torque output and inertia for mid-range motion tasks.

The feedback package uses a single-turn inductive pickup, eliminating gears and reducing wear in high-cycle applications. Mounting is handled through an IEC flange with accuracy N, allowing accurate alignment to gearboxes or adapters without additional shimming. Output torque is transferred through a keyway shaft, and the stator uses a K winding matched to Kollmorgen drive algorithms for efficient current use. The feedback head is size 10/15/21, and the motor is supplied in the standard customization level with no application-specific mechanical changes included.
