Product Description:

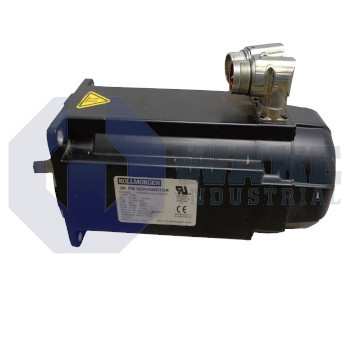

The AKM54N-ACC2R-00 is a synchronous servo motor produced by Kollmorgen within the AKM Synchronous Servo Motors series. As an electromechanical actuator, it converts drive current into precise rotational motion for indexing tables, packaging axes, and assembly stations that demand repeatable positioning. The motor is intended for compact servo axes where repeatable positioning, stable speed regulation, and smooth acceleration are required throughout repeated production cycles.

Mechanical integration starts with a 108 mm square frame that sets the mounting footprint on the machine. The flange follows the IEC with accuracy N pattern, so it mates directly with gearboxes or machine plates built to that standard. Output torque is transmitted through a shaft with a keyway, allowing pulleys or couplings to seat securely under reversing loads. For controlled stopping when power is removed, a 24 V holding brake is integrated; it engages by spring force and releases when the brake circuit is energized. Power and feedback lines exit through two SpeedTec Ready connectors, a twist-lock connection style that simplifies cable attachment and helps preserve sealing during wiring. The motor is supplied in a standard configuration, so the housing and materials follow the base design for this model.

Servo loop data is delivered by a feedback package with 2 poles of magnetic resolution to the drive, supporting stable commutation and speed feedback. The sensing element is a resolver, chosen for wide temperature tolerance and strong resistance to electrical noise. Position data covers one revolution because the feedback device is single-turn inductive, which suits systems that can complete a homing routine at startup. The resolver core uses Size 10/15/21 hardware, matching common connector pinouts on compatible Kollmorgen drives. Winding designation N and rotor length index 4 set the motor's torque curve and thermal behavior for mid-range power duties.
