Product Description:

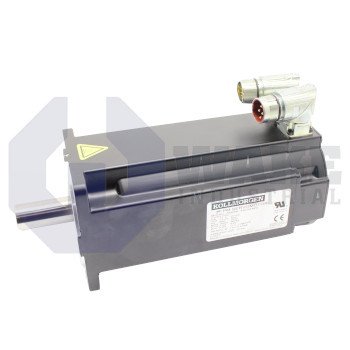

The AKM54L-ACCNAB-00 is a synchronous servo motor manufactured by Kollmorgen and belongs to the AKM Synchronous Servo Motors series. It operates as an electromechanical actuator that turns drive current into controlled rotation for industrial automation tasks such as coordinated robotics, indexing tables, and packaging axes. By combining precision feedback with a compact motor body, it supports high-response position and velocity control in closed-loop systems. In typical operation, the motor works with a servo drive that continuously adjusts current to match commanded motion and changing load conditions.

Its cabling interface uses two SpeedTec Ready connectors, allowing quick quarter-turn locking while helping maintain sealed electrical connections. Position information is supplied by a BiSS B encoder, and the feedback channel provides absolute data together with incremental signals at a base resolution of 2048 lines/rev. The encoder incorporates an optical multi-turn counting stage, so the axis can retain position information across power cycles without external batteries. Data are formatted as AD34/AD58 for compatibility with Kollmorgen AKD and similar drives. This arrangement gives the controller precise shaft information at startup and during coordinated motion.

The mechanical interface follows an IEC flange with accuracy N pattern for attachment to standard gearheads or machine plates. A square frame width of 108 mm sets the stator envelope, and rotor length index 4 determines the active stack depth for this motor size. Torque is transmitted through a keyway shaft, which helps prevent slip under cyclic load and supports positive coupling to driven components. The motor is supplied without a brake, so holding torque must come from the drive or an external mechanism. Winding designation L matches the electrical pairing intended for medium bus voltages in the AKD drive family.
