Product Description:

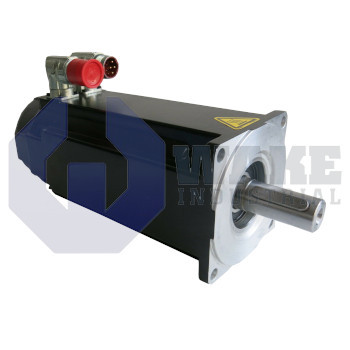

The AKM54K-ACC2C-00 is a rotary servo motor produced by Kollmorgen as part of the AKM Synchronous Servo Motors series. It converts controlled electrical energy into precise mechanical rotation for positioning, velocity, and torque duties inside automated machinery. The motor is intended for applications that require repeatable motion, accurate speed control, and stable operation during frequent start-and-stop cycles.

An integrated 24 V holding brake keeps the shaft locked when power is removed, which supports load retention on axes that must remain in position at standstill. Electrical connection is handled through 2 SpeedTec Ready connectors, allowing quick keyed coupling for power and feedback without miswiring. Position data are generated by an SFD sensor that sends four lines of digital signals to the drive, reducing cabling while preserving commutation accuracy. The sensor uses a Single-turn inductive principle, so it returns absolute position within one revolution and resists magnetic interference. A 108 mm frame dimension matches IEC mounting pitches and gives the motor an outer diameter suited to common machine layouts.

A Keyway shaft provides positive torque transfer to couplings and pulleys. The Rotor length index 4 indicates the fourth lamination stack in the 5-frame body, which supports higher continuous torque without changing the mounting footprint. Stator copper is wound to the Winding designation K, so the electrical characteristics match drives that supply the required voltage and current. The interface uses an IEC flange with accuracy N, which helps simplify alignment on compatible gearboxes or machine faces. The encoder housing follows feedback size code 10/15/21, and the motor is supplied in the standard customization level with standard seals, bearings, and insulation.
