Product Description:

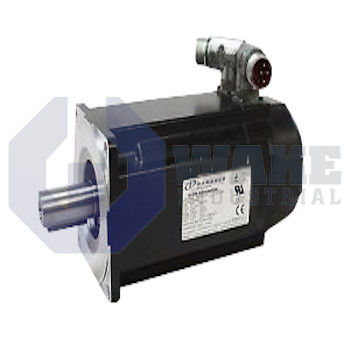

The AKM53K-CNC2R-00 belongs to the AKM Synchronous Servo Motors series produced by Kollmorgen for closed-loop industrial automation tasks that require precise torque and velocity control. As a mid-frame servo unit, it combines a permanent-magnet rotor with electronic commutation so that drives can position loads accurately along linear or rotary axes in packaging lines, pick-and-place robots, and material-handling gantries. A rotor length index of 3 increases the active stack to support higher continuous torque while keeping inertia suitable for dynamic motion. The winding designation K matches the stator to drives that operate within the voltage and current range intended for this motor.

This model integrates a 24 V holding brake that secures the load when power is removed, helping prevent unwanted movement on vertical or suspended mechanisms. Wiring is handled through 2 SpeedTec Ready connectors, allowing quick plug-and-twist connection of the power and feedback harnesses without special tools. The motor is supplied in the Standard customization level, so its mechanical and electrical interfaces follow the standard design. Rotor position is reported by a Resolver with 2 poles, providing sinusoidal feedback that tolerates electrical noise and elevated temperatures commonly found in servo cabinets.

The feedback chain uses Single turn inductive feedback for position sensing during closed-loop operation. Mechanical mounting follows the Alternative Flange Variant C, giving bolt-circle and pilot dimensions compatible with legacy ISO patterns. The motor has a 108 mm frame, so the housing fits medium-power servo zones in multi-axis cells while preserving a compact installation envelope. A smooth shaft supports coupling to zero-backlash clamps or shrink-fit hubs for cyclic torque transmission. The feedback package is identified as size 10/15/21, and the connector orientation supports cable egress parallel to the motor axis to help reduce cabinet depth.
