Product Description:

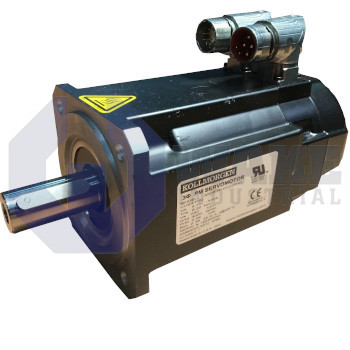

The AKM52H-CCC2R-01 is a synchronous servo motor manufactured by Kollmorgen for the AKM Synchronous Servo Motors series. It provides controlled torque and speed for pick-and-place stations, indexing tables, and other positioning axes used in automated equipment. The permanent-magnet design supports responsive motion and steady servo operation across repeated start-stop cycles. This makes it suitable for packaging, assembly, and transfer systems that rely on repeatable axis movement. Its compact industrial form allows it to fit applications where accurate rotary motion must be maintained under changing loads.

The motor includes a 24 V holding brake that remains engaged when power is removed, helping the axis stay in place during stops or power loss. Electrical connections are made through two SpeedTec Ready connectors, which use a half-turn locking mechanism for quick cable attachment in confined spaces. The housing has a frame dimension of 108 mm, giving the motor a defined mounting footprint for matching machine interfaces. Mounting is based on Alternative Flange Variant C, which sets the flange pattern at the machine face. The feedback system operates with 2 poles, supporting stable signal generation for positioning tasks that need responsive acceleration.

Position feedback is provided by a resolver, which supplies single-turn inductive signals that resist electrical noise in industrial environments. The output end is equipped with a shaft seal to help limit the entry of debris and the migration of lubricant near the coupling face. Torque is transmitted through a keyway on the shaft, allowing pulleys or couplings to be fixed securely to the output journal. The winding uses designation H, matching the electrical characteristics expected by compatible drives. Additional configuration details include feedback size 10/15/21 for cable compatibility and a rotor length index of 2, which gives the motor a moderate stack length for continuous torque and balanced thermal performance.
