Product Description:

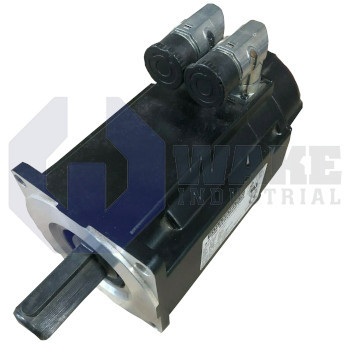

The AKM52H-ACC2R-00 is a synchronous servo motor manufactured by Kollmorgen in the AKM Synchronous Servo Motors series. It is intended for closed-loop automation where precise velocity and torque control are needed to position loads on packaging machinery, assembly gantries, or converting lines. The motor receives current-controlled commands from a compatible drive and converts them into rotary motion that helps keep motion paths repeatable under changing load conditions. This makes it suitable for axes that require smooth acceleration, stable low-speed operation, and repeatable stopping points during continuous machine cycles.

The motor includes a 24 V holding brake that secures the shaft during power loss so suspended or overhung loads remain stationary. Installation uses two SpeedTec Ready connectors, which provide quarter-turn coupling for power and feedback connections without tools. Position data is supplied by a resolver, whose analog sine and cosine signals remain stable in electrically noisy environments. The frame has a square face dimension of 108 mm, which helps the motor fit machine interfaces sized for that housing. Torque is transmitted through a shaft with a keyway, allowing positive mechanical coupling to pulleys or gearboxes. This arrangement supports compact cable routing and secure mechanical engagement in tightly spaced machine layouts.

The feedback device uses 2 poles, which produces one electrical cycle per mechanical revolution for straightforward commutation in the drive. It is a single-turn inductive system, so absolute position is available within one revolution while multi-turn tracking must come from the control system. Because the feedback method is inductive, it does not rely on optical elements and remains suitable for equipment exposed to vibration or electrical interference. The motor face follows IEC with accuracy N, which supports precise alignment for direct mounting to compatible gearheads or machine plates. Electrical behavior matches winding designation H, which corresponds to the H winding family used with suitable AKD drive combinations.
