Product Description:

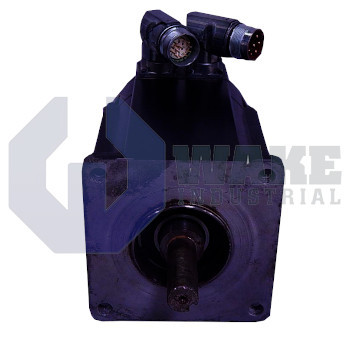

The AKM52G-BSC22-02 is a servo motor manufactured by Kollmorgen and supplied within the AKM Synchronous Servo Motors series. It is intended for closed-loop motion axes where fast position correction and continuous velocity control are required in machinery, packaging stations, or pick-and-place gantries. By combining rare-earth magnet technology with a compact housing, the motor delivers accurate torque response while reducing cabinet space and cabling complexity in industrial automation cells.

This model is equipped with a 24 V holding brake that maintains shaft position when power is removed, preventing back-driving on vertical loads. Power and feedback conductors terminate on 2 SpeedTec Ready connectors, allowing keyed quick-lock mating for fast connection. For high-resolution commutation and velocity loops, the internal disc provides 2048 lines/rev, and the signal is generated by a Comcoder sensor that combines incremental and commutation tracks. A NEMA flange pattern aligns the motor with standard U.S. mounting faces, so it fits common gearboxes and machine interfaces. The rotor length index of 2 balances torque production with rotor inertia, and the shaft is supplied in a special non-standard geometry that mates to custom couplings without additional machining.

The housing spans a 108 mm frame dimension, which provides a clear reference for envelope clearance when multiple axes are installed close together. The encoder is specified as single-turn optical feedback, which resets to zero after one revolution and favors applications that home at startup rather than track multi-turn positions. The feedback type code is EPC 15T, which ensures correct interpolation counts and commutation phasing. To match the thermal limits of this frame, a G winding is selected; this winding letter sets the copper fill and turns count so that voltage, current, and speed align with drives in the 230 V class while staying within motor insulation limits.
