Product Description:

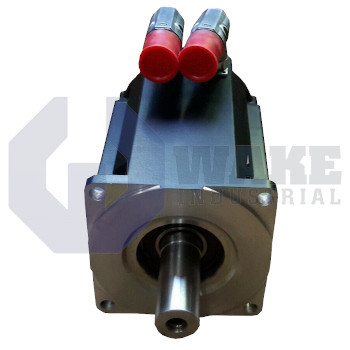

The AKM52E-ANCNR-00 servo motor is produced by Kollmorgen as part of the AKM Synchronous Servo Motors series. This rotary unit converts electrical energy from a matched drive into regulated torque and speed for indexing tables, gantry axes, and other motion stages used in industrial automation. Its compact construction and standardized mounting interfaces allow the motor to be integrated directly into machines where precise position control and rapid acceleration are required. The motor is suited to applications that need repeatable motion, stable speed regulation, and direct coupling to common axis hardware.

Mechanical connection points follow the IEC flange pattern with accuracy grade N, and the front face measures 108 mm across for straightforward alignment with gearboxes or load couplings. Power and feedback cabling is routed through two SpeedTec Ready connectors, and the keyed arrangement helps speed installation while maintaining a secure sealed connection after locking. The shaft is a smooth shaft, so torque is transferred through clamp or shrink couplings instead of keyways. Because the motor is supplied without a brake, holding torque during power-off must be provided by the drive amplifier or by an external mechanical lock. This omission shortens the motor body and reduces rotational inertia.

Motion feedback is generated by a resolver, an analog device that tolerates high temperatures and vibration. The rotor uses a single-turn inductive system, so position is referenced within one revolution and no multi-turn data are retained. Internal geometry corresponds to index 2, indicating a medium rotor length that balances peak torque with manageable inertia for mid-frame machines. Electrical behavior is matched to winding designation e, a coil set chosen for the voltage constant and current range used with compatible AKD drives. These features support responsive velocity control and accurate positioning during repeated servo motion.
