AKM51E-ANCNC-00

  • Rated 4.7 (7 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The AKM51E-ANCNC-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 38.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 3.87 kW.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

AKM51E-ANCNC-00

  • Rated 4.7 (7 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The AKM51E-ANCNC-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 38.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 3.87 kW.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a AKM51E-ANCNC-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Industrial automation received a complete overhaul with the introduction of AKM series motors from Kollmorgen. Industrial robots, packaging and textile machinery, machine tools, are among the top beneficiaries of the high motor density delivered by these motors. For optimal performance, Kollmorgen AKM motors are designed to be driven by Kollmorgen servo drives in the AKD series. These drives are used to control the motors’ speed or torque. To prevent damaging AKM series motors, Kollmorgen prohibits mounting and operating them in environments with high levels of dust, electrically conducting vapors, bases, acids, and or oils.

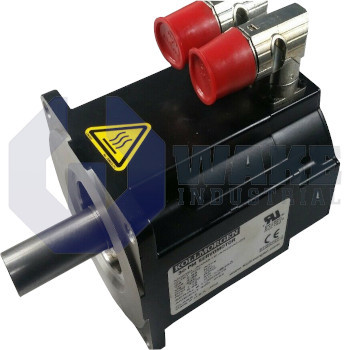

The AKM51E-ANCNC-00 is a Kollmorgen brushless servo motor in the AKM series. The motor is fitted with thermal sensors in its windings to help in precise monitoring and control of temperatures inside the motor’s frame. The AKM51E-ANCNC-00 has a frame size of 108 millimeters, a smooth shaft, and standard factory customizations. To enable precise positioning, the motor features a generation two single turn smart feedback device. For easier connections, the AKM51E-ANCNC-00 is shipped with two angular, rotatable connectors. With an international protection rating of IP 65, these connectors can withstand high levels of dust and low pressure water jets.

The Kollmorgen AKM51E-ANCNC-00 is designed to reach optimum performance when mounted and operated in an environment with a surrounding temperature of between 5 degrees Celsius and 40 degrees Celsius at an altitude not exceeding 1000 meters above sea level. The motor’s permissible operating relative humidity is rated at up to 95 percent without condensation. Note that the motor’s power derates by 17 percent, 30 percent, and 55 percent, when operated at an altitude of 3000 meters, 4000 meters, and 5000 meters above sea level.

  • AKM-51E-ANCNC-00
  • AKM51E-ANCNC-OO

AKM51E-ANCNC-00 Technical Specifications

Flange size: 108 mm
Peak torque: 11.6 Nm
Rotor length: 1
Winding code: E
Shaft : Smooth
Flange : IEC
Feedback device: Smart feedback device
Brake: No brake
Customization : Standard
Weight: 4.2 kg

Frequently Asked Questions about AKM51E-ANCNC-00


Q: Does the motor support DC input?

A: The motor does not support DC input.

Q: What is the AC input range?

A: The AC input voltge range is 230 to 480 VAC.

Q: What are the speed ratings for the motor?

A: The speed ratings are 1200 RPM at 230 VAC, 2500 RPM at 400 VAC and 3000 RPM at 480 VAC.

Q: What are torque and current ratings at standstill?

A: The torque at standstill is 4.7 Nm and the current at standstill is 2.75 Amps.

Q: What are the peak torque and current ratings?

A: The peak current rating is 8.24 Amps and the peak torque rating is 11.6 Nm.

Internal Product Review

  • ‘‘AKM51E-ANCNC-00 is a high-performance motor with an integrated smart feedback device.’’
