Product Description:

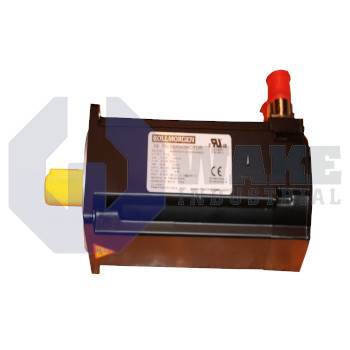

The AKM44H-ACGNAB-00 is a synchronous servo motor manufactured by Kollmorgen and supplied in the AKM Synchronous Servo Motors series. As a permanent-magnet rotary actuator, it delivers precise position and velocity control for packaging stations, pick-and-place modules, and similar motion axes in automated machinery where repeatable servo response is required. The motor is delivered without a factory-fitted holding brake, so external mechanical locking is required if power-off retention is needed.

Power and signal terminations are made through 2 SpeedTec Ready connectors, allowing quick plug-in installation and keyed mating that resists misalignment. Position feedback is provided by a 2048 lines per revolution incremental scale that is read by the integrated BiSS B encoder, and this digital protocol transmits absolute position and diagnostic data over a bidirectional serial link. For extended travel tracking, the sensor includes multi-turn optical counting so the controller can recover the true axis angle after power cycling. The encoder head follows the AD34/AD58 mechanical format, which helps maintain compatibility with existing feedback interface layouts. Mechanical attachment at the load side uses an IEC flange with accuracy class N, ensuring interchangeability with gearboxes or driven equipment that share the same centering and bolt pattern.

The motor body uses an AKM frame size of 84 mm square. Its rotor length index of 4 balances torque output with overall inertia for mid-range duty cycles and supports installation where standard AKM mounting space is already available. Torque is transferred through a keyway shaft, which provides positive drive engagement with couplings or pulleys while helping prevent slippage under reversing loads. Internally, the stator uses an H winding selected for the intended voltage and current ratings.
