Product Description:

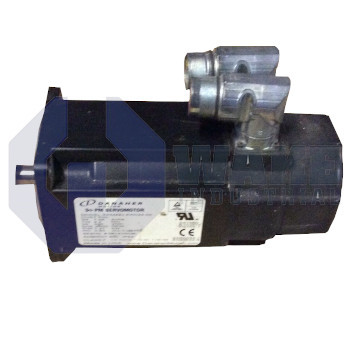

The AKM42J-EKC22-00 is a brushless AC servo motor built by Kollmorgen as part of the AKM Synchronous Servo Motors series. It is installed on closed-loop automation axes where fast response and repeatable positioning are required in packaging, material-handling, and general motion platforms. This arrangement allows the drive to correct motion errors during operation and maintain stable axis behavior under changing loads. Because the motor is brushless, it avoids brush wear and supports consistent operation in continuous cycling applications.

It is equipped with a 24 V holding brake that applies mechanical torque when power is lost, preventing vertical or suspended loads from drifting. The brake is useful on axes that must remain in place during a power interruption or a controlled stop. Power and feedback are routed through two SpeedTec Ready connectors, which use a keyed quick-lock interface that resists vibration loosening. Separate connectors keep motor power and feedback circuits organized at the housing, which helps maintain reliable signal transmission during repeated axis movement. Rotor position information is delivered at a resolution of 2048 lines per revolution by the built-in incremental encoder, so the drive can run fine velocity and position loops. The encoder hardware uses the Comcoder design, which combines optical sensing with digital interpolation for clean quadrature signals at high speed. A square 84 mm frame dimension allows the motor to mount directly to machinery that follows IEC size 84 patterns while keeping the envelope compact.

For medium-torque tasks, the feedback stack uses a single-turn optical format, so position is tracked accurately within one mechanical revolution. Identification code EPC 15T denotes the electrical interface and complements the J winding configuration, which sets the voltage-to-speed curve for higher base speeds on 230 V drives. Mechanical coupling is through an open keyway shaft, and the stator corresponds to Rotor length index 2, balancing thermal capacity with overall motor length. The open keyway shaft allows positive torque transfer to pulleys, couplings, or gear inputs. The motor has a standard customization level and is intended for use with AKM-compatible servo controllers.
