Product Description:

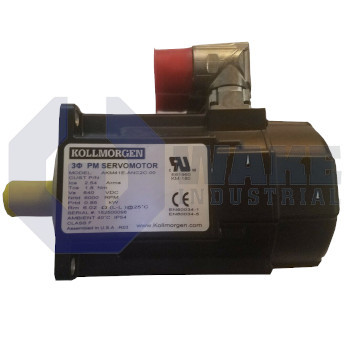

The AKM41E-ANC2C-00 synchronous servo motor is built by Kollmorgen for the AKM Synchronous Servo Motors series. It is designed to deliver commanded torque and speed in closed-loop motion axes that require fast response and fine positioning accuracy. Typical roles include driving pick-and-place arms, carton formers, or small transfer stations where compact size and low rotor inertia are advantageous. The motor is also well suited for machines that cycle frequently and need repeatable motion during short indexing moves.

A factory-mounted 24 V holding brake locks the shaft when power is removed so vertical loads remain supported. Power and feedback are routed through 2 SpeedTec Ready connectors, allowing keyed push-and-turn mating that shortens installation time and helps prevent miswiring. The feedback channel uses 4 lines and the motor's SFD sensor to provide rotor angle information without optical components. Mechanical alignment to the machine frame is handled by an IEC flange with accuracy class N, so the front face seats squarely against standardized gearboxes or brackets. This mounting arrangement helps keep shaft alignment consistent in compact machine assemblies. Because the brake is built into the motor, the axis can remain held during a power loss or when the drive is disabled.

The feedback device uses a single-turn inductive format, so the drive can detect position within one mechanical revolution. The square frame measures 84 mm, which matches the size-4 housing envelope used for compact servo installations. A smooth shaft supports precise coupling with clamping hubs where low backlash is important. Internal lamination length follows rotor length index 1, which suits moderate duty operation. The inductive feedback design avoids the light source and code disk used by optical systems, which can be useful where durable feedback hardware is preferred. The motor also has a standard customization level, a Size 10/15/21 feedback form factor, and winding designation e.
