Product Description:

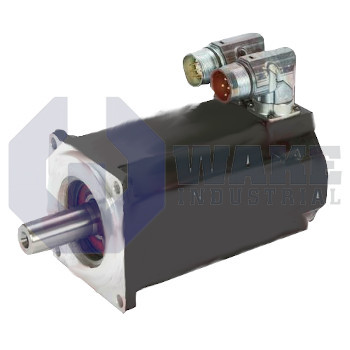

The AKM33H-ANCN1-00 is a servo motor manufactured by Kollmorgen within the AKM Synchronous Servo Motors series. Designed for closed-loop motion systems, the unit converts drive current into precise mechanical rotation for indexing tables, pick-and-place heads, and other axes in automated machinery. It supports repeatable starts, stops, and speed changes on short-cycle equipment where accurate position control is required. Its IEC flange and integrated feedback allow direct mounting to gearheads or driven loads while maintaining positional accuracy during operation.

The motor is supplied with 2 SpeedTec Ready connectors, so power and signal cabling can be locked without tools and routed neatly in compact machines. The frame dimension is 70 mm, which matches the IEC B14 pattern and keeps the mounting footprint consistent with similar actuators. The output end is a smooth shaft, which is useful where clamp couplings or timing pulleys are secured by friction rather than a key. For position feedback, Kollmorgen integrates a Comcoder that delivers incremental data at 1024 lines/rev, and the drive uses these pulses to regulate velocity and follow profile commands accurately. The rotor has no mechanical brake, so stopping torque must be provided by the drive or by external mechanics, and the motor is supplied at the manufacturer’s standard customization level.

The stator uses winding code H, which balances continuous torque and thermal rise for medium-voltage drives. Mounting surfaces follow the IEC flange with accuracy N standard, giving predictable concentricity for gearhead alignment. Position sensing is provided by single-turn optical feedback, so applications that need multiturn data must track position externally. The motor uses rotor length index 3, which gives a moderate torque constant within this motor family. The feedback identification EPC 15T corresponds to this encoder configuration and helps match the motor to compatible drive feedback settings.
