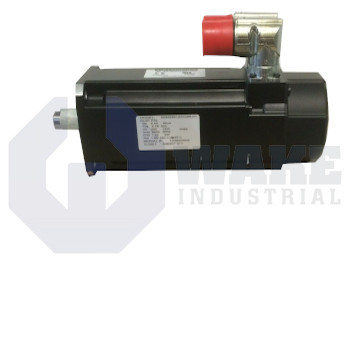

AKM33H-ACC2R-01 Kollmorgen
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
The Kollmorgen AKM33H-ACC2R-01 is part of the AKM Synchronous Servo Motors series and features a 70mm frame with a keyway shaft and a shaft seal. It includes a 24V holding brake, an IEC flange with accuracy N, and uses 2 SpeedTec Ready connectors. This servo motor is equipped with a resolver feedback system supporting single turn, inductive feedback with 2 poles.
Internal Product Review
The AKM33H-ACC2R-01 is a Kollmorgen AKM synchronous servo motor with resolver feedback and a single-turn inductive feedback system. A 24V holding brake and keyway shaft support dependable axis retention and straightforward mechanical integration.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The AKM33H-ACC2R-01 is a synchronous servo motor manufactured by Kollmorgen and assigned to the AKM Synchronous Servo Motors series. The designation 33 identifies the frame and rotor length index 3 combination, while the terminal suffix signals the interface options supplied with the unit. This motor is employed as a rotary actuator in industrial automation, supplying closed-loop torque and velocity so that packaging lines, pick-and-place robots, or feed drives can follow programmed motion profiles with low latency and high positioning accuracy during repeated start-stop motion.
The integrated 24 V holding brake locks the shaft when power is removed, preventing back-drive on vertical or load-bearing axes. Two power and feedback cables attach through two SpeedTec Ready connectors, a keyed quarter-turn interface that supports secure cable attachment and maintains ingress protection. A factory-installed shaft seal sits behind the front bearing to limit lubricant escape and block airborne contaminants from entering the housing. Position feedback is produced by a Resolver, an inductive transducer that withstands shock and temperature better than optical encoders. Its winding set generates signals for 2 poles, providing electrical commutation information to the drive.
The mechanical interface follows an IEC accuracy N flange, allowing the motor to bolt to gearheads or machine plates without custom adapters. Its compact 70 mm frame dimension keeps rotor inertia low, and the output shaft has a keyway for positive torque transfer to couplings or pulleys. Winding code H matches the stator turns and conductor size to compatible mid-range drives, and the resolver is wired for single-turn inductive feedback in Size 10/15/21 format so the controller receives rotor position information throughout each revolution.
