Product Description:

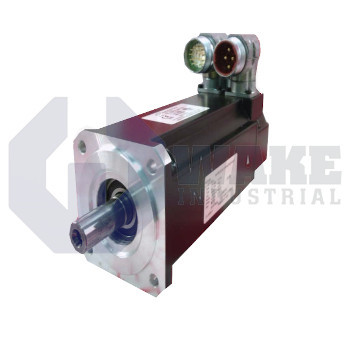

The AKM33E-ANCNDA-00 is a synchronous servo motor produced by Kollmorgen within the AKM Synchronous Servo Motors series. In industrial automation, this compact rotary actuator converts commanded current into tightly regulated position, speed, or torque, allowing machinery such as packaging stations, pick-and-place heads, or index tables to follow precise motion profiles. Its 70 mm frame size keeps power density high while simplifying direct mounting to metric gearboxes and machine frames, letting OEMs achieve accurate closed-loop motion without bulky mechanical transmissions.

Mechanical and electrical interfaces are streamlined. The motor is supplied without a brake, so stopping and holding must be handled through drive torque or external clamps. Power and feedback are routed through 2 SpeedTec Ready connectors, which lock with a quarter turn and allow quick servicing. Rotor position is measured by an EnDAT 2.1 encoder delivering 512/2048 lines/rev of native resolution, enabling the drive to interpolate fine incremental steps for smooth velocity control. A 70 mm square frame dimension matches IEC size 70 gearheads and keeps centerline height consistent across the AKM33 build. Internal copper geometry follows winding designation e, setting the voltage constant and phase current that the matched Kollmorgen drive must supply.

Feedback integrity is reinforced by single-turn optical feedback, encoded through the ECN1113/1313 sensor pair, so absolute rotor position is available after each startup without adding multi-turn tracking electronics. Mounting aligns to an IEC flange with accuracy N, allowing repeatable concentricity when the motor is indexed to precision couplings. A smooth shaft mates with clamp collars or taper bushings and avoids keyway stress concentrations in high-cycle servomechanisms.
