Product Description:

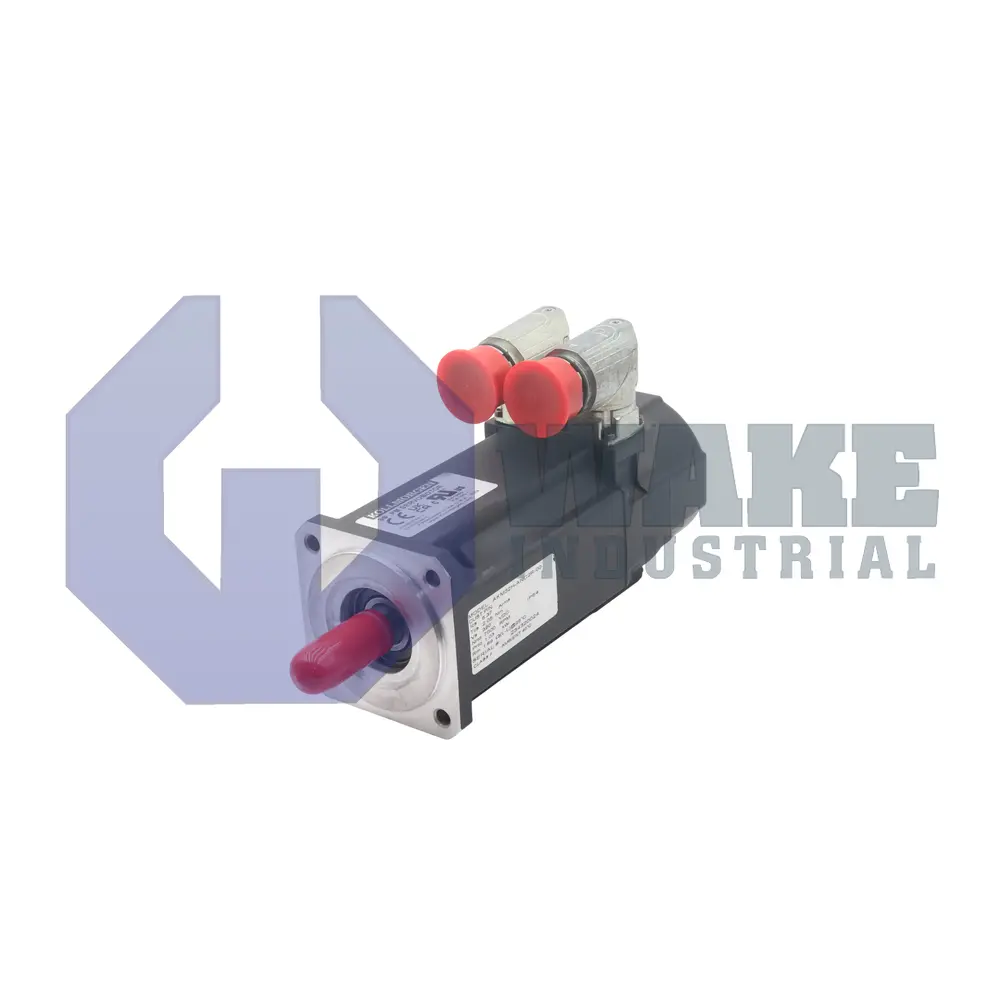

The AKM32H-ANC2R-00 is a servo motor produced by Kollmorgen within the AKM Synchronous Servo Motors series. It serves as a compact drive element that delivers precise torque and position control for automated handling equipment, assembly cells, and similar motion tasks. The motor’s electromagnetic design supports rapid start-stop cycles, which helps maintain consistent motion in applications that require repeatable positioning and short cycle times.

Mechanical and electrical connections are provided through 2 SpeedTec Ready connectors, with one connector for power and one for feedback, which helps simplify field wiring and ensures keyed mating. An integral 24 V holding brake keeps the load stationary when the drive is disabled, which is useful on vertical or suspended axes. Position information is supplied by a resolver with 2 poles, and this sensor is resistant to electrical noise and elevated temperatures. The feedback system uses a single-turn inductive configuration, so position is tracked within one motor revolution without relying on batteries. The stator is built on a 70 mm frame, which helps balance torque output with the space limits of compact machines.

The front face uses an IEC flange with accuracy N pattern, allowing direct installation on standardized gearboxes or mounting surfaces. The motor has a smooth shaft, which supports clamp-style couplings and avoids keyway-related stress concentrations. Winding code H matches the electrical characteristics associated with this coil arrangement. The feedback electronics are housed in a Size 10/15/21 package that matches common resolver interface formats. It is supplied at a standard customization level, and the rotor length index 2 version provides moderate inertia for mid-range acceleration while keeping the overall package compact.
