Product Description:

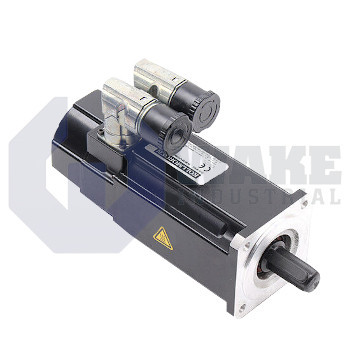

The AKM32H-ACC2R-00 is a synchronous servo motor manufactured by Kollmorgen within the AKM Synchronous Servo Motors series. This brushless AC unit addresses medium-power motion tasks in packaging equipment, electronic assembly lines, and light machine tools where precise velocity and position regulation are needed. With its permanent-magnet rotor locked to the stator field, the motor supports deterministic positioning and smooth torque delivery, helping reduce cycle times while keeping control cabinets compact.

In its standard form, the motor carries a 24 V holding brake, allowing suspended or vertical loads to remain locked during power loss or emergency stop events. Connections for power and feedback are arranged as two SpeedTec-ready connectors; the bayonet mechanism speeds installation and preserves EMC shielding on moving carriages. Rotor position is detected by a resolver, which supplies analog sine-cosine signals that endure shock and temperature extremes. The resolver is configured as single-turn inductive, so absolute angular data for one revolution is available without auxiliary batteries. Mechanical integration is simplified by the square housing that spans 70 mm, matching common IEC 70 interfaces in this frame size.

The front flange follows the IEC with accuracy N standard, keeping runout and perpendicularity within limits required for high-precision gearheads. The electromagnetic circuit uses 2 poles, balancing magnetic flux for low cogging while permitting moderate electrical frequencies. The motor has a shaft with a keyway for torque transmission through shrink-fit or setscrew couplings without slip. The stator carries winding code H, which corresponds to the voltage constant and thermal class used for continuous duty on mid-voltage drives operating at elevated base speeds.
