Product Description:

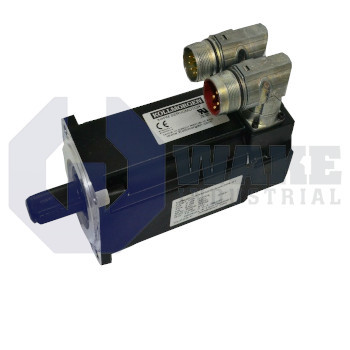

The AKM32D-ANCNR-01 is a brushless servo motor produced by Kollmorgen within the AKM Synchronous Servo Motors series. Designed for closed-loop control tasks, the unit converts regulated drive current into precise rotary motion for positioning tables, pick-and-place axes, and packaging machinery. Its electromagnetic core, compact frame, and integrated feedback structure allow the motor to deliver rapid torque response while maintaining fine speed resolution for tightly synchronized automation tasks.

The electromechanical interface is organized for streamlined installation. The motor is supplied without a brake, so holding torque must be provided by the drive or an external mechanism when power is removed. Power and feedback cables connect through 2 SpeedTec Ready connectors, which use quarter-turn locking to support secure connections under vibration. To limit grease ingress along the output journal, the housing is equipped with a shaft seal. Internally, a stator wound for 2 poles supports low rotor inertia and high electrical-frequency operation. Position information comes from a Resolver, which is a single-turn inductive device that tolerates high temperatures and electrical noise, and its size 10/15/21 body supports common mounting practice.

The motor uses an IEC with accuracy N flange, so bolt-circle alignment is consistent with standardized gearboxes and reducers. Overall frame width is 70 mm, giving the motor a compact footprint for side-by-side mounting on multi-axis stages. A smooth shaft simplifies coupling to clamp or collet hubs, reducing stress concentrations that can occur with keyways. The electromagnetic package uses winding designation D together with rotor length index 2 to balance continuous torque, thermal dissipation, and speed capability for medium-inertia loads in general factory automation.
