Product Description:

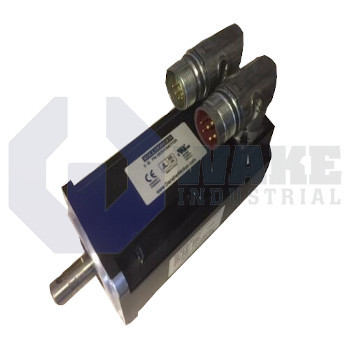

The AKM32D-ACFNR-01 belongs to the AKM Synchronous Servo Motors series supplied by Kollmorgen for closed-loop motion axes in industrial automation. As a permanent-magnet servo motor, it converts electrical power from a matched drive into precisely regulated torque and speed. This supports positioning tables, pick-and-place arms, and similar equipment.

This model is delivered without a brake, so any static holding torque must come from the drive or an external mechanical device. Position feedback is generated by a resolver, an electromechanical sensor that withstands vibration better than optical encoders. The resolver in this motor has a resolution of 2 poles, which returns two electrical cycles to the controller per mechanical revolution and supports reliable commutation. A square housing with a 70 mm frame side length simplifies mounting next to other IEC devices, and the front flange uses IEC accuracy N tolerance so shaft concentricity aligns with standard gearboxes. A rotor length index of 2 balances inertia against peak torque response, while feedback hardware is listed as size 10/15/21, indicating coil body dimensions compatible with conventional resolver drive circuits.

The mechanical interface includes a shaft seal that protects the bearing cavity from oil mist and fine dust during continuous cycling. Inside the feedback channel, the resolver supplies single-turn inductive position data, so multi-turn tracking is unnecessary in applications with homing routines. Power transfer occurs through a keyway shaft; the keyed section resists slip when the motor is coupled to pulleys or couplings that experience start-stop loads. The stator uses a D winding, a designation within the AKM family for the phase resistance and inductance used with matching drive current settings.
