Product Description:

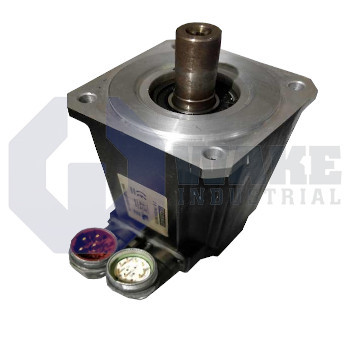

The AKM32D-ACCNR-00 is a synchronous servo motor engineered by Kollmorgen for the AKM Synchronous Servo Motors series. This frame-size unit delivers closed-loop rotary positioning to conveyors, gantry axes, and material-handling tools where repeatable accuracy is required. When paired with a compatible servo drive, it provides the torque and speed control needed for industrial automation tasks such as coordinated multi-axis motion and rapid indexing.

The motor is supplied without a brake, so an external holding device is required when power is removed. Power and feedback are routed through two SpeedTec Ready connectors, which support quick, keyed coupling during installation. Internal position sensing is handled by a resolver; this electromagnetic transducer withstands electrical noise and high temperatures common in industrial environments. The resolver’s resolution is fixed at 2 poles, and it is configured as a single-turn inductive device to simplify homing routines. Kollmorgen designates the mechanical interface as an IEC flange with accuracy N, allowing direct attachment to gearboxes or mounts that meet the same tolerance band. This build uses a standard customization level, with no special shaft or winding changes. Feedback hardware is identified as Size 10/15/21, aligning pin diameters and housing geometry with other AKM family motors.

A compact 70 mm frame minimizes footprint while permitting a continuous torque envelope typical for this motor class. Output torque is transferred through a keyway shaft, ensuring positive engagement with pulleys or couplings under reversing loads. Magnetic length is specified by rotor length index 2, which provides a mid-range core that balances inertia and torque density for high-cycle applications. The electromagnetic stack follows winding code D, and this winding uses electrical values compatible with AKD drives from the same product family.
