Product Description:

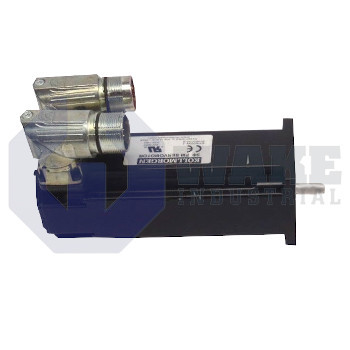

The AKM24D-BNBN2-00 is a synchronous servo motor produced by Kollmorgen and included in the AKM Synchronous Servo Motors series. As a compact rotary actuator, it converts commanded stator current into controlled torque, speed, and position for pick-and-place axes, indexing tables, and electronic gearing tasks in automated machinery. Its compact housing supports fast response and repeatable motion, making it suitable for coordinated multi-axis equipment where precise positioning and stable speed control are required.

This model is supplied without a brake, so holding torque during power loss must be provided by an external device or by the drive. Two SpeedTec Ready connectors simplify cabling because the power and feedback connections use quarter-turn bayonet fittings that help maintain shield continuity. Rotor feedback is delivered at 2048 lines/rev, which provides high-resolution incremental position data for accurate velocity control and stable servo operation. The feedback device is a Comcoder, combining an optical code wheel with commutation tracks so the amplifier receives the information needed for motor control. The motor also uses a 58 mm square frame, which fits NEMA 23 mounting layouts in compact machine designs.

The encoder uses single-turn optical feedback, so multi-turn position retention must be handled by the controller when an application requires it. Identification code EPC 15T refers to the internal emitter-photodiode arrangement and interface electronics used in the feedback module. The flange follows the NEMA pattern, which supports straightforward mounting and alignment on compatible machine plates. A smooth shaft provides a suitable surface for clamp or compression hubs, and winding letter D indicates a voltage constant suited to medium-voltage bus drives while balancing torque density with thermal rise during continuous industrial duty.
