Product Description:

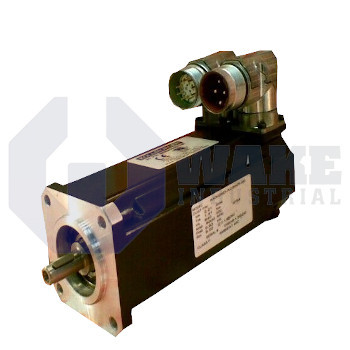

The AKM24D-ANC2DB-00 servo motor is manufactured by Kollmorgen and belongs to the AKM Synchronous Servo Motors series. It is intended for closed-loop motion axes in packaging machines, pick-and-place gantries, and other industrial equipment that require accurate speed and position control. By integrating an absolute encoder and a holding brake inside the housing, the motor reduces the number of external components needed around a single-axis drive stage. This helps keep the axis compact and supports orderly installation in machines where available space is limited.

The motor has a frame side length of 58 mm, which permits direct installation into compact IEC gearheads. The mating surface uses an IEC flange with accuracy N, allowing repeatable concentricity for high-speed coupling. Rotor length index 4 adds active iron for higher continuous torque than shorter motors in the same frame size. Wiring is streamlined through 2 SpeedTec Ready connectors that accept quick-lock power and feedback plugs and help keep cable routing organized around the motor. The output is a smooth shaft, which suits clamp collar hubs and avoids keyway-related stress points. The winding marked D sets the motor's voltage constant and nominal speed for medium bus voltages.

For static holding or emergency stop conditions, an integrated 24 V holding brake clamps the load when drive power is removed. Position data comes from an optical EnDAT 2.1 encoder with 512/2048 lines/rev, and it stores multi-turn information without batteries so absolute position remains available across many revolutions. The scanning arrangement designated EQN1125/1325 aligns signal formatting with Kollmorgen AKD and other compatible drives. Because the feedback system is optical and multi-turn, it supports precise motion control without the heat drift associated with magnetic sensors. This combination allows the motor to report position immediately at startup in applications that use absolute feedback.
