Product Description:

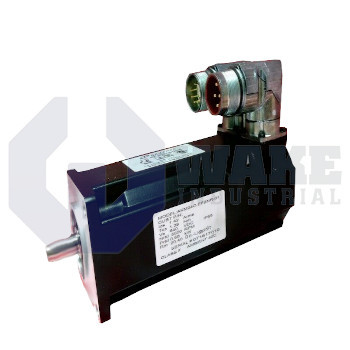

The AKM24C-EFBNR-01 is a brushless servo motor built by Kollmorgen within the AKM Synchronous Servo Motors series. This rotary unit serves as a torque source for positioning and speed control axes in automated machinery. By combining permanent-magnet excitation with wound stator phases, it converts controlled current from a matched drive into mechanical rotation suitable for pick-and-place gantries, indexing tables, or packaging stations in industrial automation.

The motor is wired through 2 SpeedTec Ready connectors, so both power and feedback lines can be locked with a quarter-turn to reduce assembly time and maintain reliable contact under vibration. It is supplied with a shaft seal, which helps limit the ingress of coolant or dust along the output shaft. Rotor position is detected over 2 poles by an integrated resolver, and its laminated core acts as a transformer-based measurement system that remains durable in harsh environments. The feedback element provides single-turn inductive information, so the controller can determine the exact mechanical angle within one revolution. A mechanical holding brake is not fitted, so standstill holding must be provided by external clamping or motor torque from the drive.

The feedback package is classified as Size 10/15/21, matching Kollmorgen cabling kits while keeping the encoder cavity compact. A square 58 mm flange dimension aligns with standard IEC and NEMA adapter plates for direct mounting. The laminated core uses a rotor length index 4, which increases magnetic surface area compared with shorter stacks and raises continuous torque without changing the frame width. The windings use winding designation C; this code indicates the turns count and wire gauge so that rated speed and voltage align with compatible drives on 230–400 V bus systems.
