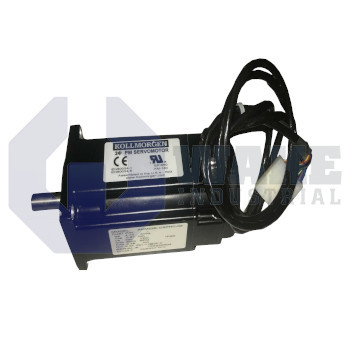

AKM22E-CSPNC-02 Kollmorgen
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
The Kollmorgen AKM22E-CSPNC-02 is part of the AKM Synchronous Servo Motors series and features a frame dimension of 58mm and an alternative flange variant C. This servo motor has a single turn inductive SFD feedback system with 4 lines, and is designed without a brake. The shaft detail is special and the winding designation is e.
Internal Product Review
The AKM22E-CSPNC-02 is a Kollmorgen AKM synchronous servo motor that stands out with SFD feedback and a single-turn inductive feedback arrangement. Alternative Flange Variant C and a special shaft make the unit especially appealing for tailored mechanical integration in motion systems. The brake-free configuration is a strong fit for streamlined, high-response servo applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The AKM22E-CSPNC-02 belongs to the AKM Synchronous Servo Motors series produced by Kollmorgen. As a compact permanent-magnet servo unit, it converts drive current into precise torque and position control for tightly regulated motion tasks in industrial automation. It is suited to indexing tables, pick-and-place axes, and other equipment that depends on accurate starts, stops, and repeatable positioning. Its compact construction also helps when the motor must fit into crowded machine layouts without sacrificing dynamic response. This makes the model useful in packaging, assembly, and light material-handling systems that require responsive servo performance in a small envelope.
This motor uses a 58 mm frame that saves space while retaining enough thermal mass for servo duty. Its mounting face follows the Alternative Flange Variant C pattern, which helps it fit machines prepared for that flange style. The unit is supplied without a brake, reducing rotor length and inertia when holding force is provided by the machine. Position feedback leaves the housing through an eight-wire cable that carries 4 lines of incremental and commutation data. These signals come from a single-turn, inductive resolver element that resists contamination over changing temperatures, and the shaft has special machining for nonstandard couplings.
The feedback core uses SFD signaling, allowing compatible drives to process the designated motor feedback format correctly. Encoder packaging follows the Size 10/15/21 format, which supports shared connector hardware across nearby frame sizes. Within the naming code, rotor length index 2 indicates the magnetic volume used for this motor. The winding code e identifies electrical values suited for 230 VAC class drives. That arrangement keeps the electrical characteristics aligned with compatible servo amplifiers while preserving the compact size expected from this frame.
