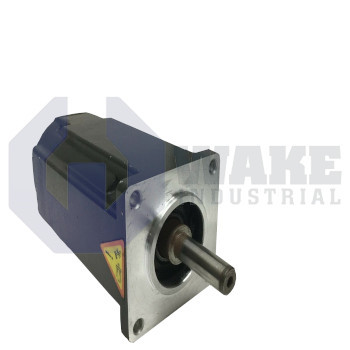

AKM22E-BNMNC-00 Kollmorgen
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Kollmorgen AKM22E-BNMNC-00 is a synchronous servo motor in the AKM Synchronous Servo Motors series featuring a NEMA flange configuration and a 58 mm frame dimension. It has a smooth shaft and uses an SFD feedback system with four lines, single turn inductive feedback.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The AKM22E-BNMNC-00 is a compact servo motor manufactured by Kollmorgen and supplied within the AKM Synchronous Servo Motors series. It is intended for closed-loop position and velocity control in automated machinery, where precise torque delivery must be paired with limited installation space. The motor belongs to the family of permanent-magnet synchronous units used with Kollmorgen drives to actuate indexing tables, pick-and-place gantries, or small packaging axes. Its compact format also suits multi-axis equipment where several motors must fit within a restricted machine envelope.
This model is built to a standard customization level, so the motor has a consistent mechanical interface and winding set without added factory modifications. It ships without a brake, so any static holding duty must rely on drive torque or an external locking device. Rotor position data are communicated through 4 lines of differential signaling from the onboard SFD resolver-based feedback system. That transducer provides single-turn inductive feedback, which avoids optical disks and improves resistance to contamination in food, textile, or woodworking environments. The electrical connector houses electronics rated as size 10/15/21, which sets the mating plug geometry and allowable cable strain relief. This arrangement supports stable signal transmission and keeps cable routing straightforward.
Mechanically, the motor uses a NEMA flange that simplifies bolt-on installation to gearheads or directly to machine plates. The stator body follows a 58 mm frame code, letting designers fit multiple axes in confined multi-motor clusters. Internal stack length is identified as rotor length index 2, balancing torque output against inertia for responsive acceleration. A smooth shaft avoids keyway stress risers and is suitable for clamp-style couplings, while winding code e targets medium bus voltages common in 230 VAC servo cabinets. This combination supports accurate alignment at the coupling and helps the motor integrate with compatible Kollmorgen drive systems.
