Product Description:

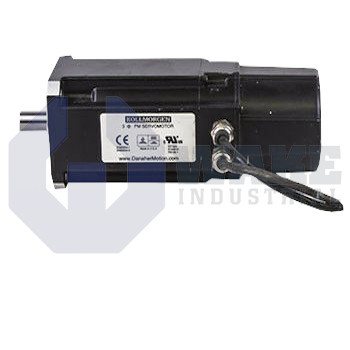

The AKM22E-BNC2R-00 is a compact synchronous servo motor manufactured by Kollmorgen within the AKM Synchronous Servo Motors series. As an electromechanical actuator, it supplies precise torque and speed control for indexing tables, pick-and-place axes, and light packaging stations in industrial automation. The motor pairs with Kollmorgen drives to create a closed-loop axis that maintains commanded position under dynamic loads, eliminating the need for mechanical compensation devices in many compact motion systems. This makes it suitable for automation equipment where fast response and repeatable motion are required without using a large motor frame.

A 24 V holding brake secures the shaft during power-off events. The housing has 2 SpeedTec Ready connectors, which align with keyed plugs to shorten wiring time and maintain shielding. Position feedback comes from a resolver with 2 poles, and its wound core tolerates shock and heat better than optical devices while still enabling sinusoidal commutation. This feedback method supports stable commutation across changing speeds and operating temperatures. The e winding designation balances copper loss against thermal rise, and the motor has the standard customization level. Rotor length index 2 sets the active stack, and the overall width is 58 mm, which suits tight multi-axis clusters.

The mounting interface follows the NEMA flange configuration, allowing the motor to bolt directly to common gearboxes or aluminum frames without adapter plates. A smooth shaft simplifies coupling to low-backlash clamps and reduces fretting in high-cycle service. That shaft style is useful where direct couplings are preferred and added keyway clearance is unnecessary. The feedback system uses a single-turn inductive design for rotational position sensing within one mechanical revolution, and the hardware is categorized as Size 10/15/21 for compatible mating components. This layout suits compact servo axes with limited installation space around the motor body.
