Product Description:

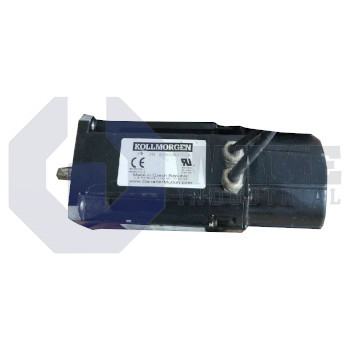

The AKM22E-ANC2R-00 is a brushless synchronous servo motor manufactured by Kollmorgen for the AKM Synchronous Servo Motors series. It converts controlled current from a drive into precise torque and speed for positioning axes in assembly cells, packaging equipment, and laboratory automation. Because it is a brushless synchronous design, the motor supports repeatable motion profiles, smooth acceleration, and accurate speed regulation when paired with a compatible servo drive. The motor uses an IEC-compatible flange and SpeedTec connection features, so it fits standard servo installations without requiring special interface hardware.

The motor includes a 24 V holding brake that secures the shaft when power is removed and helps prevent drift on vertical axes. Electrical power and feedback signals are routed through 2 SpeedTec Ready connectors, allowing fast cable attachment and removal. Rotor position is monitored by a rugged resolver, and its electrical cycle is divided across 2 poles to support stable commutation and speed feedback without separate encoder electronics. This arrangement keeps the connection area compact at the motor housing and simplifies cable routing in dense machine layouts. The motor has a 58 mm frame dimension, which lets it match mounting patterns used for compact motors in the AKM line.

The feedback system uses a single-turn inductive architecture, so position data is tracked within one turn without internal gearing. A rotor length index 2 provides a medium active stack that balances motor length and torque capability within this frame size. That stack length gives the rotor more active magnetic length than the shortest version while keeping overall dimensions compact. Output torque is transmitted through a smooth shaft that works with clamp or collet couplings and supports direct, backlash-free mechanical connections. Feedback scaling is matched to Size 10/15/21, keeping the resolver package aligned with the motor's electrical interface.
