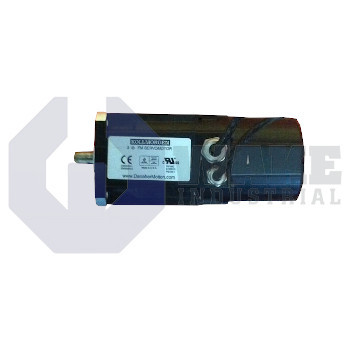

AKM21C-ANC22-00 Kollmorgen
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
45 Seconds
The Kollmorgen AKM21C-ANC22-00 is part of the AKM Synchronous Servo Motors series and features a 58 mm frame with an IEC flange configuration of accuracy N. It has a 24V holding brake and two SpeedTec Ready connectors, along with a smooth shaft. The servo motor uses a Comcoder feedback system with 2048 lines per revolution and an optical single turn feedback type EPC 15T.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The AKM21C-ANC22-00 servo motor is produced by Kollmorgen and belongs to the AKM Synchronous Servo Motors series. It converts drive current into precisely metered mechanical rotation so that indexing tables, linear actuators, and small gantry heads can follow commanded profiles with minimal following error in factory automation. This makes it suitable for packaging equipment, assembly cells, and other machines that rely on repeatable starts, stops, and direction changes. Its construction supports direct coupling to light-to-medium loads while maintaining high dynamic response, making it a practical choice for compact automation modules where space and accurate motion are both important.
With a frame dimension of 58 mm, the motor fits IEC machinery envelopes and mates to gearboxes through an IEC flange with accuracy N tolerances. A smooth shaft output suits press-fit or clamp couplings, while winding designation C aligns the stator with drives of matching voltage and current. Power and feedback connections are provided through 2 SpeedTec Ready connectors that lock with a quarter-turn motion, which helps keep cable routing compact on small machines. A 24 V holding brake secures the load when the drive is disabled, and rotor length index 1 helps keep inertia low for fast acceleration. The brake is useful on axes where the load must remain in place after power is removed.
Position information is provided by a Comcoder feedback system that combines an optical code disk with Hall tracks. Its native resolution is 2048 lines/rev, and the encoder supplies single-turn optical data to the drive, which is suitable for short-stroke applications that do not need multi-turn memory. The EPC 15T signal format matches compatible Kollmorgen digital drive receivers. Because the encoder reports position within one revolution, it works well on axes that return to a known reference during operation. This feedback arrangement supports responsive control during positioning and speed regulation, and the motor is supplied in a standard configuration.
Frequently Asked Questions about AKM21C-ANC22-00:
Q: What type of brake system is featured on the AKM21C-ANC22-00 servo motor?
A: This motor includes a 24V holding brake for secure position retention during power-off conditions.
Q: What connector arrangement does the AKM21C-ANC22-00 utilize?
A: The AKM21C-ANC22-00 comes equipped with two SpeedTec Ready connectors for easy and rapid installation.
Q: What is the feedback resolution of the AKM21C-ANC22-00 servo motor?
A: A feedback resolution of 2048 lines per revolution is provided on this model for precise position control.
Q: What type of shaft detail does the AKM21C-ANC22-00 servo motor include?
A: This motor features a smooth shaft design for applications requiring minimal friction or special couplings.
Q: What kind of feedback system is used on the AKM21C-ANC22-00 model?
A: The AKM21C-ANC22-00 uses a single turn, optical Comcoder feedback system with EPC 15T type.
