AKM13D-ANMN2-00

  • Rated 4.6 (21 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The AKM13D-ANMN2-00 Is manufactured by Kollmorgen and features a max BUS of 320 and max Tp of 1.46 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .30 Kw.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

AKM13D-ANMN2-00

  • Rated 4.6 (21 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The AKM13D-ANMN2-00 Is manufactured by Kollmorgen and features a max BUS of 320 and max Tp of 1.46 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .30 Kw.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a AKM13D-ANMN2-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

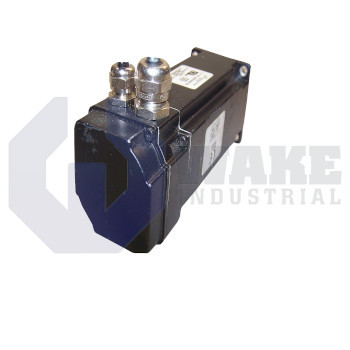

AKM13D-ANMN2-00 is a brushless DC motor manufactured by Kollmorgen Company. Kollmorgen is among the world's leading producers of top-tier motion technologies. It boasts of products such as AGV systems, motors, linear actuators, drives, and gearheads. The AKM13D-ANMN2-00 is among these top-grade technologies. It is designed to be operated in drive systems together with servo amplifiers. The combination is then used in applications such as textile, packaging machines, and industrial robots. In such applications, it is primarily used for positioning tasks.

The ambient conditions of the AKM13D-ANMN2-00 motor include an operating temperature of 5 and 40 degrees and a storage temperature range of -25 and 85 degrees. The maximum installation elevation is 1000 meters above sea level and the permissible humidity is between 5 and 95 degrees. This AKM motor features a standard still torque of 0.40Nm and standard still current of 2.40A. The maximum mains voltage is 230VAC. It also features a peak current of 9.6A, peak torque of 1.44Nm, torque constant of 0.71Nm/A, and voltage constant of 10.9mVmin. The mechanical data include a weight of 0.63kg, 0.045kgcm2 rotor moment of inertia, and a static friction torque of 0.0031Nm.

The AKM13D-ANMN2-00 features a flange size of 40mm, a rotor length of 3, and a D winding type. It also features an IEC flange, a smooth shaft, and a 0.5m shielded cable with IP 20 connectors. The insulation material class of this motor is F according to DIN 57530 while the vibration class is N according to DIN ISO 2373. Like most AKM series motors, it is designed for flange mounting. This can be done through three ways shaft end side A, shaft end upwards, and shaft end downwards.

  • AKM-13D-ANMN2-00
  • AKM13D-ANMN2-OO

AKM13D-ANMN2-00 Technical Specifications

Frame Size: AKM1
Max BUS (VDC): 320
Max Rated N: 8000
Max Rated Power at Max BUS: .30 Kw
Max Stall Tc: .409 Nm
Max Tp: 1.46 Nm
Stack Length: 3
