Product Description:

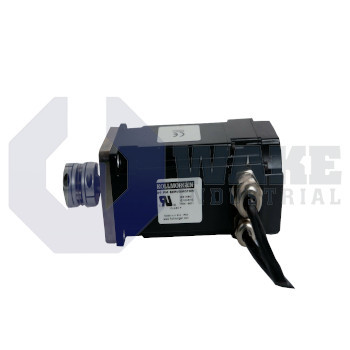

The AKM12E-ANMN2-00 is a Kollmorgen servo motor offered in the AKM Synchronous Servo Motors series. Listed as an AKM synchronous servo motor, it is used as a compact drive element for industrial automation axes that demand quick position moves and repeatable speed regulation. By coupling with matched digital drives, this motor converts command currents into controlled torque, enabling assembly stations, light conveyors, and small robotics to execute precise motion profiles. Its permanent-magnet rotor supports high dynamic response while keeping overall inertia low. Its compact size also suits tightly spaced axes where responsive acceleration and repeatable stopping are required.

The motor has a 40 mm frame size that sets the mounting footprint, and an IEC with accuracy N flange aligns the pilot diameter and bolt circle with standardized machine interfaces. Output torque is transmitted through a smooth shaft, which supports coupling to gearheads or pulleys without a keyway. The motor is supplied without a brake, so holding torque must be provided externally when power is removed. A rotor length index of 2 balances torque density against shaft length, and the customization level is standard with no special winding or housing changes. Internal coils use winding code e, which matches the electrical characteristics expected by compatible drives.

Position feedback is handled by a Comcoder device that combines commutation and incremental channels at 2048 lines/rev, allowing high-resolution velocity loops without an external encoder. The sensor is a single-turn optical feedback element that supports position detection within one mechanical revolution, which suits rotary axes that re-home at startup. The signal format is EPC 15T, ensuring electrical compatibility with Kollmorgen and third-party servo drives that accept 5 V differential signals and digital Hall information. These feedback signals support stable speed regulation and accurate position tracking during motion.
