Product Description:

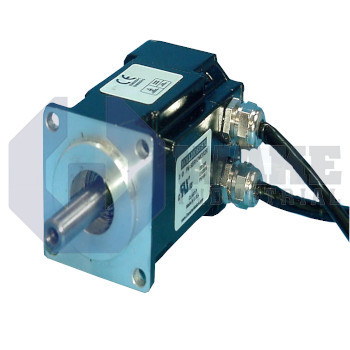

The AKM11C-AKCNR-00 is a synchronous servo motor manufactured by Kollmorgen for the AKM Synchronous Servo Motors series. It is intended for tight-space automation where repeatable velocity and position control are needed on lightweight pick-and-place axes or miniature indexing stations. Its compact format supports installations where limited mounting space and low moving mass are important for fast cycle changes and controlled motion. It is also suitable for small handling modules that need responsive starts and stops without the size of a larger motor frame.

This model is delivered without a brake, which reduces length and inertia for high-speed profiling. Power and feedback are routed through 2 SpeedTec Ready connectors, allowing quick-lock mating in compact equipment. The customization level is Standard, so the motor uses baseline mechanical options and electrical ratings. Rotor position is monitored by a Resolver, and the drive uses that analog signal for commutation and field-oriented control. The feedback system uses single-turn inductive sensing, which supports stable position tracking within one mechanical revolution. A rotor length index of 1 keeps the active stack short and supports low thermal mass.

Mechanical mounting uses an IEC flange with accuracy N, which provides a consistent pilot and bolt pattern for compact machine assemblies. The motor has a 40 mm frame dimension, which fits small gearheads and linear stages. Torque is transferred through an open keyway shaft, making the output suitable for pulleys or pinions. The electrical design uses winding designation C, which corresponds to the motor constants expected by the matching drive. The motor also uses a Size 10/15/21 feedback type and an unventilated enclosure for compact installations. This arrangement keeps external cooling hardware unnecessary.
