Product Description:

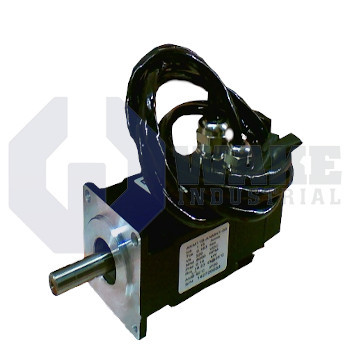

The AKM11B-ANMN1-00 is a compact synchronous servo motor produced by Kollmorgen for the AKM Synchronous Servo Motors series. It converts drive current into tightly regulated torque and speed, making it useful for precise positioning tasks in pick-and-place robots, light conveyor sections, and laboratory automation stages. Its small frame lets the motor fit where space is limited while maintaining the closed-loop performance required for repeatable motion profiles in multi-axis assemblies.

The motor uses a 40 mm frame dimension, so the mounting face and overall diameter align with miniature IEC machinery layouts. An IEC flange with accuracy N ensures concentricity and bolt spacing compatible with standardized gearboxes or direct-drive couplings. Position feedback is delivered by a Comcoder device that integrates incremental and commutation tracks, and the encoder provides 1024 lines/rev of resolution for fine velocity and position granularity. A smooth shaft simplifies coupling to precision clamps and minimizes fretting on low-inertia loads. The motor is supplied in a standard configuration, and the EPC 15T designation identifies internal sensor electronics that match Kollmorgen digital drive inputs.

Mechanical holding is handled externally because the motor is supplied without a brake, reducing axial length and mass for high-speed duty cycles. The feedback device is single-turn optical, which eliminates multi-turn gear trains and eases homing sequences when power is restored. Within the stator stack, the rotor length index 1 indicates the shortest magnetic core offered in this frame size, resulting in lower continuous torque and very low rotor inertia for rapid acceleration. The coil set marked winding designation B pairs with drives that provide the corresponding voltage constant.
