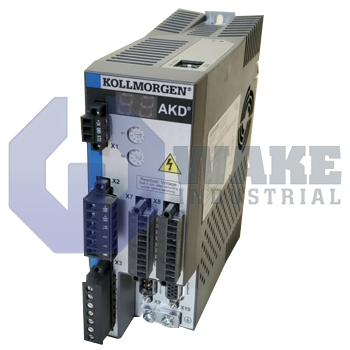

The AKD-P00306-NACN-0000 is manufactured by Kollmorgen as part of the AKD Servo Drive Series. These drives are fast, and flexible drives with features such as a drive continous output power of 1100 Watts and a rated supply voltage of 120/240 V. As well as, Rated output current of 3 A and a peak output current of 9 A. AKD drives offer the greatest output in a compact body.

AKD-P00306-NACN-0000

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKD-P00306-NACN-0000 is manufactured by Kollmorgen as part of the AKD Servo Drive Series. These drives are fast, and flexible drives with features such as a drive continous output power of 1100 Watts and a rated supply voltage of 120/240 V. As well as, Rated output current of 3 A and a peak output current of 9 A. AKD drives offer the greatest output in a compact body.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKD-P00306-NACN-0000 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The AKD-P00306-NACN-0000 falls under the AKD series of drives manufactured by Kollmorgen Company. Kollmorgen is a company renowned for the production of state-of-the-art motion technologies such as servo drives, servo motors, stepper motors, and more. This type is engineered to drive servo motors with closed-loop control of speed, torque, and position. It is a component of an electric machine or apparatus and can only be brought to operation as part of the machine. Ensure that the machine meets all the required regional directives before operation. Mount the AKD-P00306-NACN-0000 in a terminal box suitable for ambient conditions. Provide optimal ventilation or cooling to keep the temperature below 40 degrees.

The AKD-P00306-NACN-0000 can be supplied by a 1 or 3 phase industrial supply network and can be done via an additional isolating transformer. When performing group installation, leave a space of 50mm below the drives and a space of 10mm between the drives. This is to facilitate optimum cooling. The motor should not be used in offshore applications or potentially explosive environments. Transportation, storage, and installation should be done by personnel well-trained in electrical engineering and/or motion technology to avoid machine damage or bodily harm.

Avoid touching the drive immediately after switching off the system. The capacitors can still have a dangerous voltage that can cause injury or death. Leave it for at least 7 minutes. The AKD-P00306-NACN-0000 provides a wide array of breakthrough servo application solutions. It comprises of unmatched performance, reliability, and is easy to use, significantly bolstering the work of machine builders. Thanks to their deep expertise in motion systems and innovative technology, Kollmorgen provides you an industry-leading drive for any application. It comes with a one year warranty.

  • AKDP00306-NACN-0000
  • AKD-POO3O6-NACN-OOOO

AKD-P00306-NACN-0000 Technical Specifications

Control Logic, Supply Voltage: 24 V
Control Logic, Supply Voltage:
Current Loop Bandwidth Max.: 2.5-4 kHz
Drive Continous Output Power: 1100 Watts
Peak Output Current: 9 A
Rated Output Current: 3 A
Rated Supply Voltage: 120/240 V
Velocity Loop Bandwidth Max.: 0-1000 Hz
