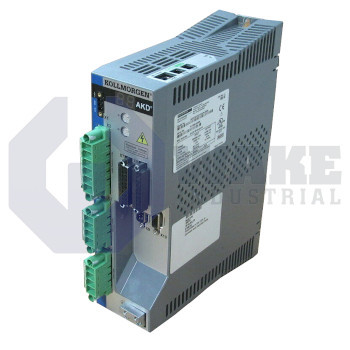

The AKD-P01207-NACN-0056 is manufactured by Kollmorgen as part of the AKD Servo Drive Series. These drives are fast, and flexible drives with features such as a drive continous output power of 8000 Watts and a rated supply voltage of 240/480 V. As well as, Rated output current of 12 A and a peak output current of 30 A. AKD drives offer the greatest output in a compact body.

AKD-P01207-NACN-0056

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKD-P01207-NACN-0056 is manufactured by Kollmorgen as part of the AKD Servo Drive Series. These drives are fast, and flexible drives with features such as a drive continous output power of 8000 Watts and a rated supply voltage of 240/480 V. As well as, Rated output current of 12 A and a peak output current of 30 A. AKD drives offer the greatest output in a compact body.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKD-P01207-NACN-0056 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Motion control systems are considered the backbone of the modern industrial setup. Control systems operate through a corrective-feedback system that constantly compares the required values of position, speed, and torque with the actual ones. Kollmorgen has decades of experience with in house design and fabrication of industrial machinery and is considered the best in the business today.

The AKD series features digital drives that prove to be exceptional systems for motion control applications. The AKD-P01207-NACN-0056 belongs to this famous AKD series and has shown remarkable results. The drive not only provides superior position control but allows the user to regulate motion across multiple degrees of freedom. This enables the user to direct motion along multiple axes simultaneously. The drive has enhanced connectivity options and can be connected with PROFINET RT, Sercos III, and EtherCAT among other interfaces. The drive comes with a built-in motion bus and IP service channel.

The AKD-P01207-NACN-0056 can be operated within a 5 ᵒC to 45 ᵒC temperature range. For the best performance, the drive should be operated within a 1000 m elevation range. The digital drive operates on a 120 V to 480 V supply voltage and supports the BiSS and HIPERFACE protocols. Both the single or three-phase connections are compatible with the drive. The overall dimensions are 72 mm x 196 mm x 187 mm (W x H x D). When connectors are attached to the drive, then the dimensions change to 78.5 mm x 225 mm x 215 mm. The drive comes to the pollution level 2 and the vibration class 3M1. Both of these classes are in accordance with the IEC. For enclosure protection, the AKD-P01207-NACN-0056 has been designed in accordance with the protection degree IP 20.

  • AKDP01207-NACN-0056
  • AKD-PO12O7-NACN-OO56

AKD-P01207-NACN-0056 Technical Specifications

Control Logic, Supply Voltage: 24 V
Current Loop Bandwidth Max.: 2-3 kHz
Drive Continous Output Power: 8000 Watts
Peak Output Current: 30 A
Rated Output Current: 12 A
Rated Supply Voltage: 240/480 V
Velocity Loop Bandwidth Max.: 0-600 Hz
