AKD-P01206-NBAN-0000
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days

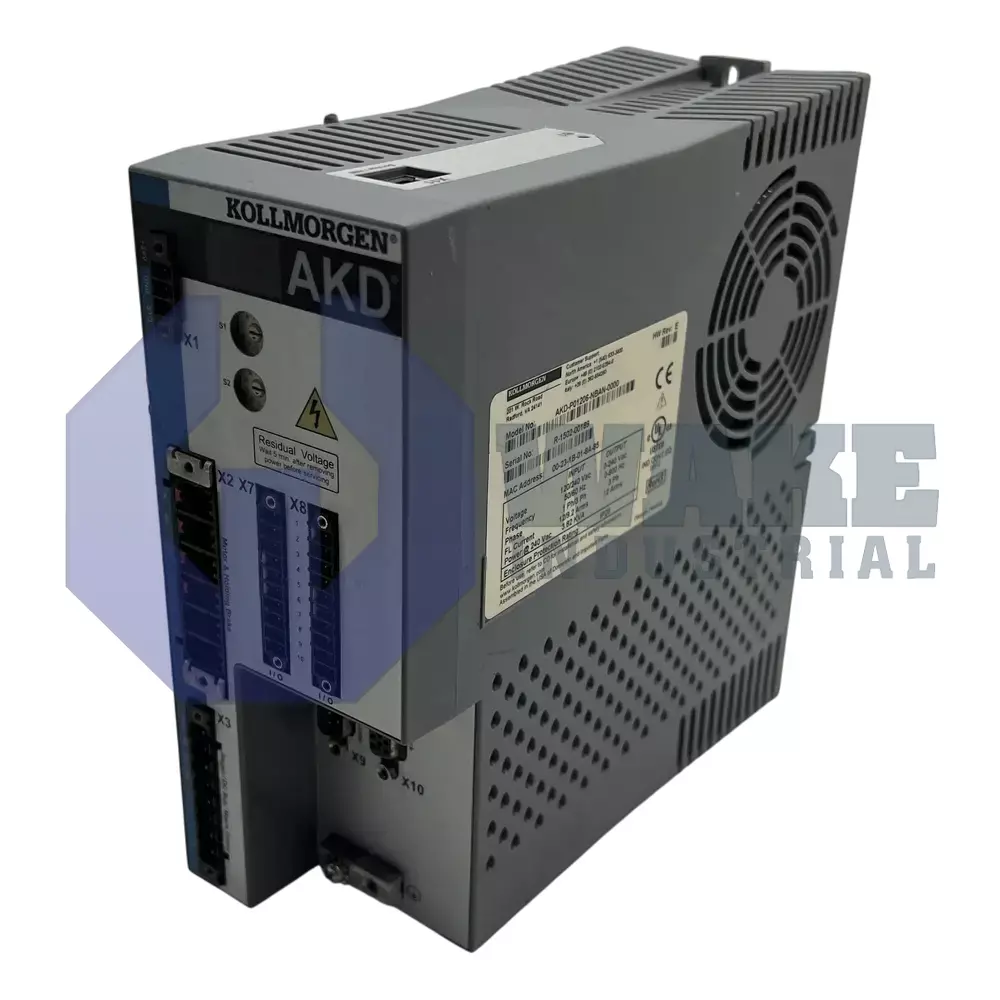

The AKD-P01206-NBAN-0000 is a digital servo drive with an output power of 1.2 kW and a continuous output current of 6 Arms. Manufactured by Kollmorgen, it is part of the AKD Servo Drives series and supports incremental encoder, Hiperface, and resolver feedback. The drive features IP20 protection and panel mounting.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The AKD-P01206-NBAN-0000 servo drive from Kollmorgen supports both 1-phase/3-phase 120 to 240 VAC input with a frequency range of 50 to 400 Hz. It also operates on DC input as an alternative power source. This drive can be mounted in a vertical position inside a control cabinet with an adequate space on all sides for ventilation to keep the temperature below 40 degrees C.
The AKD-P01206-NBAN-0000 drive measures 196 mm H x 72 mm W x 187 mm D, without connectors and it weighs 2.0 kg. The rated input power of the drive is 3.82 kVA and the DC bus link voltage range is between 170 to 340 VDC. Its maximum inrush current during startup is 10 A while at continuous pace the output current is rated 12 A and the peak output current value reaches 30 A for a duration of 5 seconds. The AKD drive supports analog control with input of ~12 VDC and 16-bit resolution while its analog output is ~10 VDC with 16-bit resolution and 20 mA max current. It also supports seven digital inputs in the range of 3.5 to 30 VDC. At its X10 terminal its offers encoder feedback support and emulated output through the X9 terminal. This unit includes a service interface with Ethernet access at X11 and a motor's holding brake can be wired through the X2 connector.
The AKD-P01206-NBAN-0000 drive's voltage rise speed is 4.3 kV/s and it supports up to 30 switch on/off cycles per hour. Its velocity controller bandwidth reaches up to 800 Hz and the position controller bandwidth ranges from 1 to 250 Hz. The AKD drive meets SIL2 and PLd Cat.3 for STO safety and its switching frequency at the output stage is 8 kHz. It comes in an IP20 class protective enclosure.
Frequently Asked Questions about AKD-P01206-NBAN-0000:
Q: How does the 4.3 kV/s voltage rise speed benefit the AKD-P01206-NBAN-0000 servo drive?
A: A high voltage rise speed reduces switching losses and improves drive response time, enhancing overall system efficiency and dynamic performance.
Q: Why is Ethernet service interface crucial in the AKD-P01206-NBAN-0000?
A: Ethernet enables remote diagnostics and real-time monitoring, reducing downtime and simplifying maintenance in complex automation systems.
Q: What is the importance of 16-bit resolution in the analog inputs of the AKD-P01206-NBAN-0000?
A: Higher resolution ensures more accurate signal interpretation, resulting in finer motor control and smoother operation.
Q: How does the support for seven digital inputs enhance the functionality of the AKD-P01206-NBAN-0000 drive?
A: Multiple digital inputs allow integration of various sensors and switches, increasing flexibility in control schemes and safety interlocks.
Q: Why does the AKD-P01206-NBAN-0000 support both 1-phase and 3-phase inputs?
A: This flexibility allows the drive to be used in diverse environments and power supplies, making it adaptable for global applications.
