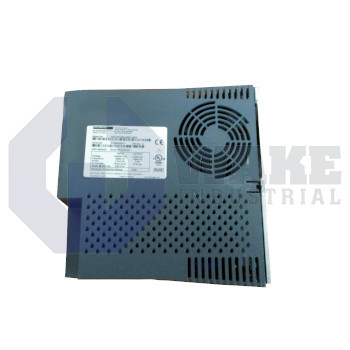

AKD-P01206-NAEC-0000
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
Available
The AKD-P01206-NAEC-0000 from Kollmorgen's AKD Servo Drives series delivers a continuous output current of 6 Arms. It supports communication interfaces like EtherCAT, CANOpen, and USB, along with feedback systems such as EnDat and Resolver. This drive features IP20 protection class and operates within an input voltage range of 85-264 VAC.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The AKD-P01206-NAEC-0000 Digital Servo Drive offers high performance motion capabilities and flexible I/O support. This drive is suitable for demanding automation applications requiring fast response and reliability.
The AKD-P01206-NAEC-0000 servo drive features one programmable analog input and output each with ~ 10 to ~ 12 VDC range and 16 bit resolution. The analog input supports over 13 kOhms impedance and 16 kHz update rate while analog output is protected against short circuits and has a 4 kHz update rate. It includes seven digital inputs with 3.5 to 30 VDC operation and two digital outputs rated at 30 VDC, 100 mA. The digital I/O is galvanically isolated for up to 250 VDC. One enable input and one STO input are also provided that ensures safe control. The relay outputs handle up to 30 VDC or 42 VAC at 1 A with 10 ms switching time and 400 VDC contact isolation. The rated DC bus voltage of the model is between 170 V and 340 V. The drive allows 30 power cycles per hour and features a short circuit proof design.
The Kollmorgen AKD-P01206-NAEC-0000 servo drive supports up to 8 kHz output switching frequency. It delivers voltage rise speeds up to 4.3 kV/us. The current controller bandwidth ranges between 2 kHz and 3 kHz and the velocity controller operates between 0 Hz and 800 Hz. The position controller supports bandwidths from 1 Hz to 250 Hz. The drive ensures precise closed loop control for high-speed automation tasks. All control functions are scalable and the system design emphasizes thermal stability with offset drift limited to 250 V/ degrees C. The drive ensures operational safety through galvanic isolation and input protection.
Frequently Asked Questions about AKD-P01206-NAEC-0000:
Q: Does the AKD-P01206-NAEC-0000 handle frequent power cycling in automation lines?
A: Yes, the AKD-P01206-NAEC-0000 supports up to 30 power cycles per hour. Its short circuit proof design ensures reliable operation in high-demand environments.
Q: Can the AKD-P01206-NAEC-0000 servo drive maintain precision in high-speed applications?
A: Yes, it supports precise closed loop control with a position controller bandwidth from 1 Hz to 250 Hz. This allows accurate motion control in dynamic industrial tasks.
Q: Does the AKD-P01206-NAEC-0000 provide safe isolation for industrial I/O lines?
A: The drive uses galvanic isolation rated up to 250 VDC for all digital I/O. It also includes short circuit protection for analog output and a separate STO input.
Q: Can the Kollmorgen AKD-P01206-NAEC-0000 servo drive handle high switching rates?
A: It delivers an 8 kHz output switching frequency with a voltage rise speed of 4.3 kV per microsecond. This supports rapid current transitions in servo operations.
Q: Is the analog interface on AKD-P01206-NAEC-0000 designed for high resolution control?
A: Yes, it features one programmable analog input and output each with ~12 VDC range and 16 bit resolution. The analog input supports a 16 kHz update rate.
