The AKD-P00607-NBEI-0000 servo drive delivers 6 A continuous output, has a peak output current of 18 A, offers an EtherCAT control interface, and supports feedback interfaces like EnDat and BiSS. From the AKD Servo Drives by Kollmorgen, it features IP20 protection and weighs 2.5 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

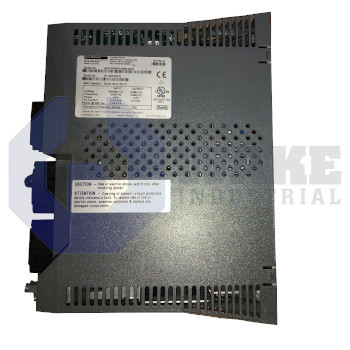

The AKD-P00607-NBEI-0000 Digital Drive is a compact high performance servo drive designed for precise motion control. It supports a wide voltage range, fast control loops and integrated safety. This model suits industrial automation where performance and safety are critical.
The AKD-P00607-NBEI-0000 servo drive from Kollmorgen offers full digital control with a digital current loop at 670 ns, velocity loop at 62.5 us and position loop at 250 us. It features one programmable analog input and one analog output along with seven programmable digital inputs and two digital outputs. An additional enable input and a Safe Torque Off (STO) input are provided for enhanced safety. Integrated safety functions include soft-start, overvoltage and short-circuit protection, phase failure monitoring and motor overload protection with a foldback mechanism. It is compliant with IEC 62061 for SIL 2 safe torque off functionality. The rated supply voltage of the drive is 3 x 240 V to 480 V ~ 10 % with supported input frequencies from 50 Hz to 400 Hz ~ 5 % or DC input. An auxiliary 24 V DC ~ 10 % power supply is required, sourced externally and safety approved. The temperature monitoring for both the drive and motor ensures reliable operation.
The AKD-P00607-NBEI-0000 servo drive weighs 2.7 kg in standard width and 2.9 kg in extended width. The unit's height is 256 mm without connectors and 290 mm with connectors. It has a standard front/back width of 65/70 mm and an extended width of 95/100 mm. The depth without connectors is 185 mm and under 225 mm with connectors. The drive meets insulation and creepage requirements per IEC 61800-5-1. This ensures electrical isolation between signal electronics and power input/motor terminals.
Frequently Asked Questions about AKD-P00607-NBEI-0000:
Q: Does the AKD-P00607-NBEI-0000 servo drive offer reliable signal isolation for safety-critical applications?
A: Yes, the AKD-P00607-NBEI-0000 complies with IEC 61800-5-1 insulation and creepage standards. This ensures full electrical isolation between the signal electronics and power terminals.
Q: Can the AKD-P00607-NBEI-0000 servo drive maintain precise motor control in high-speed systems?
A: It features digital current loop timing at 670 ns with velocity at 62.5 us and position at 250 us. These timings enable high-precision motion in dynamic automation.
Q: Is the AKD-P00607-NBEI-0000 digital drive equipped with sufficient I/O interfaces for flexible integration?
A: This model includes seven programmable digital inputs and two digital outputs. It also supports one analog input and one analog output with a dedicated STO input.
Q: How does the AKD-P00607-NBEI-0000 servo drive handle variable power supply environments?
A: It supports 3 x 240 V to 480 V ~10 percent AC input and also works with DC. Input frequency ranges from 50 Hz to 400 Hz ~5 percent.
Q: Does the AKD-P00607-NBEI-0000 servo drive have protections against motor and system faults?
A: It includes soft-start and overload protection with foldback plus short-circuit and phase failure monitoring. Safe Torque Off and temperature checks enhance safety in continuous operation.
