AKD-P00607-NBAN-0000 Kollmorgen
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.

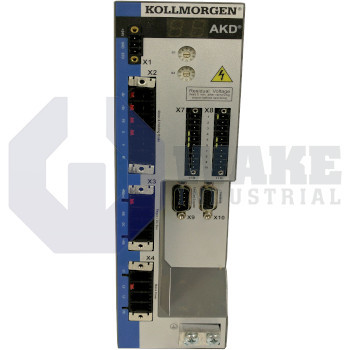

The Kollmorgen AKD-P00607-NBAN-0000 is a servo drive from the AKD Servo Drives series designed for standard USA customization. It features a nominal current of 6 Arms, a peak output current of 18 Arms for 5 seconds, and operates with a rated supply voltage of 240 or 480 Vac three-phase. This position indexer model has analog fieldbus connectivity and weighs 2.7 kilograms.
Internal Product Review
The AKD-P00607-NBAN-0000 is a Kollmorgen AKD servo drive with Position Indexer functionality. Operation at 240/480 Vac 3~ and 6 Arms nominal current supports stable integration into standard motion systems. Peak output current of 18 Arms gives the unit strong transient response, making the drive a very capable choice for precise indexing applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The AKD-P00607-NBAN-0000 is a digital servo drive produced by Kollmorgen as part of the AKD Servo Drives series. It serves as the power and control interface between an industrial controller and a permanent-magnet servo motor, converting line voltage into regulated current for position, velocity, and torque control. In automated assembly cells, packaging lines, and material-handling axes, the drive supports closed-loop motion in place of mechanical gearing or pneumatic actuation. This makes it suitable for axes that need repeatable starts, stops, and speed changes under electronic control.
The unit is supplied in the Standard USA version, which matches UL and CSA requirements. Its control platform is classified as a Position Indexer, allowing the onboard controller to run buffered motion profiles without continuous higher-level commands. Instead of a digital fieldbus, command and feedback signals are exchanged through an analog interface, allowing ±10 V velocity or torque references from PLC hardware. That arrangement is useful in systems that already use analog reference signals and discrete control wiring. Under continuous duty, the power stage supplies a nominal phase current of 6 Arms. For short acceleration periods, the current can rise to 18 Arms for up to five seconds.
The drive uses revision 8 electronics, and the internal option slot does not contain an auxiliary encoder or I/O expansion card. Its power section draws up to 4.49 kVA in continuous S1 operation, which is useful when sizing cabinet feeders and thermal management. This helps the drive fit into cabinets where feeder capacity and heat dissipation must be balanced carefully. The three-phase supply range of 240/480 Vac 3~ allows operation on low- and high-voltage plant power systems without tap changing. Despite this power capability, the standard-width chassis weighs only 2.7 kg, which helps simplify mounting on DIN rails or backplates. Its compact mass is also helpful when the control assembly is mounted on moving machine structures.
Standard USA
Position Indexer
Analog
None (rev 8+)
6 Arms
18 Arms
Frequently Asked Questions about AKD-P00607-NBAN-0000:
Q: What is the nominal current rating for the AKD-P00607-NBAN-0000 servo drive?
A: The AKD-P00607-NBAN-0000 has a nominal current rating of 6 Arms, suitable for medium power servo applications.
Q: What is the peak output current of the AKD-P00607-NBAN-0000 servo drive?
A: This unit can deliver a peak output current of 18 Arms for up to 5 seconds.
Q: What type of fieldbus connectivity does the AKD-P00607-NBAN-0000 offer?
A: The AKD-P00607-NBAN-0000 supports analog fieldbus connectivity for integration with control systems.
Q: What is the rated input power for the AKD-P00607-NBAN-0000 servo drive?
A: It operates at a rated input power of 4.49 KVA as specified for continuous use.
Q: What drive version is the AKD-P00607-NBAN-0000 equipped with?
A: This model is the Position Indexer drive version, enabling advanced indexing functions in motion control setups.
- AKDP00607-NBAN-0000
- AKD-POO6O7-NBAN-OOOO
Instructions
How to Determine What Torque You Need for Your Servo Motors
When building a robotic system with servo motors, determining the appropriate torque for each motor is essential. Torque is what allows the servo motor to effectively lift, hold, or move an object. Without sufficient torque, your motor either won’t perform as expected or may damage itself trying.
Here, we’ll break down how to calculate the torque you need, then pivot into some key nuances around how torque works in different contexts.
What Is Torque?
Torque is a force applied over a distance that causes rotation. You use torque every day when you twist open a jar or turn a doorknob. In the case of servo motors—specifically in robotics—torque determines how much weight a motor can rotate at a certain distance away from its axis. Think about a robotic arm lifting a heavy object: the motor's torque directly affects how much weight the arm can lift, and at what speed.
Mathematically, torque is expressed as:
τ = r × F
- τ is torque,
- r is the distance from the axis of rotation,
- F is the force applied.
If that feels abstract, consider that F is usually the force caused by gravity, meaning it depends on the weight of the object and its distance from the motor's center.
Torque and Servo Motors: The Core Relationship
Servo motors are frequently used in robotic arms or other machines with rotational mechanisms. The amount of torque a servo motor can exert determines its capability to perform mechanical tasks, especially when dealing with varying loads.
The lever arm length—the distance from the rotation point to the load—amplifies the effect of the weight being moved. A longer lever arm requires more torque even if the weight remains the same. So, as we dive into calculations, remember that torque isn't just about force; it’s also about how far away from the motor's axis that force is applied.
Formula Recap
The standard torque equation for servo motors typically used in applications like robotic arms can be expanded slightly:
τ = r × m × g
- r is the distance from the motor's axis to where the load is applied,
- m is the mass of the item being moved (in kilograms),
- g is the acceleration of gravity (~9.81 m/s²).
Let’s translate this into something more immediately practical: a robotic arm needs torque to lift an object at the end of the arm. If the arm is long, you’ll need more torque to achieve that same lift, even if the object you’re lifting doesn’t change in weight.
Components of Torque in Servo Motors
1. Weight of Components
The force caused by the weight of objects being moved is simple physics. Every load you expect the motor to handle has a weight. Multiplied by gravity, that’s your F.
A robotic arm lifting a box must overcome the weight of the box. However, the motor also needs to account for the weight of the components themselves, like robotic arm links or grippers.
2. Distance from the Pivot
The lever arm length is just as crucial. Calculating torque by only considering force and weight without factoring in the arm’s length will result in inaccurate torque requirements and potentially a poor design.
Case Study: A Simple Robotic Arm
Imagine an arm that needs to lift a 1.5 kg box at the end of a 0.5-meter-long arm.
- m = 1.5 kg
- r = 0.5 m
- g = 9.81 m/s² (constant)
We’re now ready to plug in values:
τ = r × m × g
τ = 0.5 m × 1.5 kg × 9.81 m/s²
τ = 7.36 Nm
This means you require a minimum torque of 7.36 Newton-meters (Nm) to lift the box at the end of this particular robotic arm.
Angular Acceleration
In any instance where you need the servo motor to move a load and not just hold it, you must also account for angular acceleration. Angular acceleration means your motor needs extra torque at the beginning and during changes in movement. To calculate it:
τ = I × α
- I is the moment of inertia of the robot arm (resistance to angular motion),
- α is angular acceleration.
This means that for movements such as high-speed rotations or rapid direction changes, torque requirements jump. The speed with which the load moves and how quickly the direction changes are factored into torque calculations for dynamic motion.
Final Thoughts
To summarize everything, calculating torque isn’t just as simple as deciding how heavy a load is. It requires you to think about:
- Distance (where the weight is applied from the axis),
- Weight of the object being moved,
- The weight of other mechanical components (like links and joints inside the machine),
- Angular acceleration, especially if the motor will be moving or changing directions rapidly,
- Safety margins (plan a buffer of 20-30% torque capability beyond the minimum).
The general idea is that the larger the load or the further away from the pivot, the more torque you need. By thinking through all of these details, you can properly size your servo motor torque needs, ensuring your motor will handle everything smoothly without underperformance during operation.
Get expert servo motor guidance and competitive pricing from Wake Industrial. Whether you need one motor or a complete system, we'll help you find the right solution at the right price. Call 1-919-443-0207 now for a quick quote or email sales@wakeindustrial.com to browse our extensive servo motor inventory.
